In today’s blog, I’ll address the trends in Data Center Interconnect (DCI) and Wide Area Networks (WAN) for Metro and Long Haul distances covering 10km to 10,000 km, and how the Acacia Communications, Inc. acquisition can help drive the industry shifts happening in this space.

Pluggable optics (aka optical transceivers) are widely deployed inside the data center, campus, enterprise, or service provider central office, where:

  • Fiber is plentiful: Every router or switch port has its own dedicated fiber. If a new switch or router is added, additional fiber is added to terminate the new ports.
  • Distances are short: These distances are typically less than 10km. We use the term “short reach” for these distances.

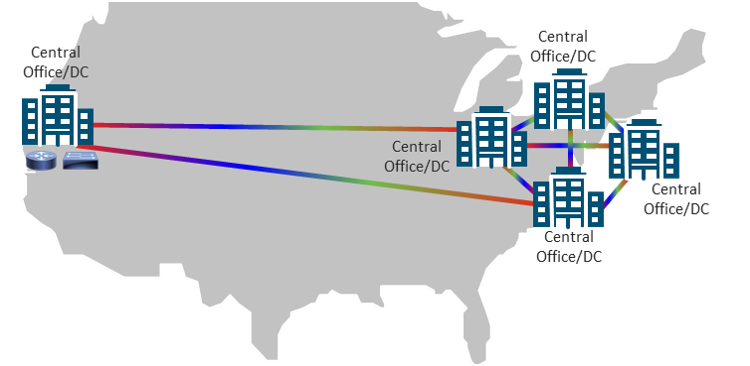

As we consider the attributes of the environment outside the data center – in the DCI and WAN for Metro and Long Haul distances, we see different characteristics:

  • Fiber is scarce: Deploying fiber across a city, or across a country requires a huge capital expenditure and may take many months to plan and deploy. In this sense, fiber is considered scarce, and the technical challenge is then to deliver as much capacity as possible onto a single fiber pair – combining many signals together in creative ways to leverage the full theoretical capacity of the fiber.  By utilizing technologies like Dense Wavelength Division Multiplexing (DWDM), we can deliver well over 25 Terabits/s on a single fiber pair today (the equivalent of 250 100G signals combined)
  • Distances are long: Typically more than 40km, but can range to several thousand km for long haul applications (e.g. New York to Los Angeles). Challenges in transmitting high bit-rate signals over long distances require coherent transmission technology, as opposed to “direct detect” technology that is sufficient in short reach applications.

The Cisco Global Cloud Index projects that traffic between data centers is growing faster than either traffic to end users or traffic within the data center, and by 2021, traffic between data centers will account for almost 14 percent of total data center traffic, up from 10 percent at the end of 2016. The high growth of this segment is due to the increasing prevalence of content distribution networks, the proliferation of cloud services and the need to shuttle data between clouds, and the growing volume of data that needs to be replicated across data centers.

Bandwidth demands require technologies that provide scalable, reliable and high-performance connectivity between data centers. This is accomplished by using DCI technology – an emerging industry trend and transition.



The primary challenges in this environment are:

  • Increase the capacity on the “existing” fiber infrastructure. This is done typically by increasing the bit rate of each individual wavelength, and/or by increasing the number of wavelengths that may be simultaneously transmitted.
  • Drive down the cost/bit: This is typically done by increasing the wavelength capacity and/or by increasing the distance that a signal may travel before having to be regenerated.
  • Automate: OPEX costs generally dwarf CAPEX costs for customers. We can help drive down OPEX costs by automating more of the manual processes, and thereby eliminating sources of human error

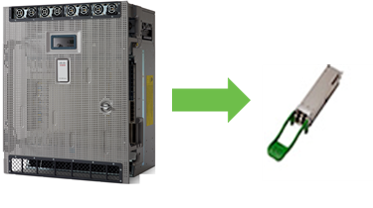

The key trend that we see in this segment is a migration from chassis-based solutions to pluggables.

"pluggables"

Functions that were traditionally delivered in separate chassis-based solutions will now be available in a pluggable form factor. This has potentially significant benefits for network operators in terms of operational simplicity. Over time, with continued improvements in ASICs and optics, we have no reason to believe this won’t extend to cover a wider range of applications.

Last week, we announced our intent to acquire Acacia. Acacia offers a complete portfolio of connectivity solutions that address the full range of applications in the DCI and WAN segments for Metro, Regional, Long Haul and Undersea links. Cisco will leverage this portfolio in continuing to expand its optical systems offering for customers who have already deployed DWDM systems. Importantly, from an optics/pluggables perspective, Cisco will drive the transition from chassis-based systems to pluggable DWDM technology for customers who want to simplify operations and reduce the complexity of managing multiple layers in the network.

In my next blog, I’ll address trends in the data center and how our solutions can help customers manage those transitions as we progress to 400G and beyond.
