This blog is authored by Amandeep Singh,
Technical Marketing Engineer – Technical Leader at Cisco
We have some exciting news: the popular Application-First Security lab with AWS has been updated, and it is better than ever! It has now been redesigned to follow the Cisco Validated Design “Securing Cloud-Native Applications – AWS Design Guide”. We also have an updated DevNet Sandbox, which you can use to go through this lab. This lab is “ByoAWS”, or bring your own AWS org (unless you are at a proctored Cisco event). That being said, we have a cleanup script that deletes all resources afterwards, so the costs should be minimal when you go through the lab (only a couple of $).
In this lab you’ll deploy the Sock Shop microservices demo application, maintained by Weaveworks and Container Solutions. Sock Shop simulates the user-facing part of an e-commerce website that sells socks. All of the Sock Shop source is on GitHub and you’ll be updating part of the application’s source code in a future portion of the lab.

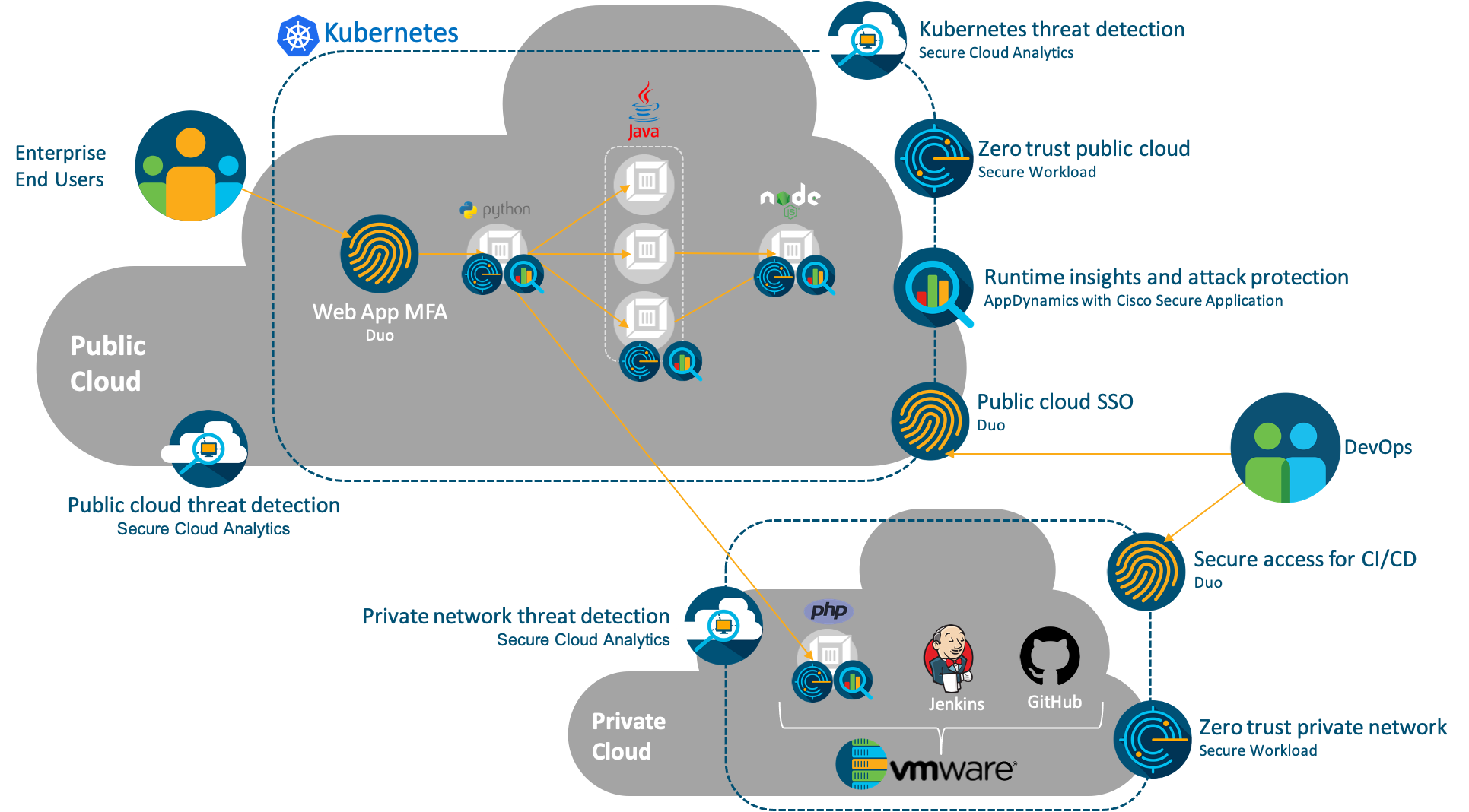

Cisco Application-First Security
Before we go into the details, let’s take a step back. If you are familiar with Cisco Application-First Security, then you can skip ahead to the updates.
Cisco’s Application-First Security solution enables you to gain visibility into application behavior and increase the effectiveness of security controls by combining capabilities of best-in-class products including Cisco Secure Workload, Cisco Secure Cloud Analytics Cloud, Cisco Duo Beyond and Cisco AppDynamics with Secure Application (not yet part of the lab, coming soon!). Key features include:
- Closer to the application: Security closer to your application gives you insight and context of your applications so you can easily make intelligent decisions to protect them.
- Continuous as application changes: Application-First Security follows your applications as it changes and moves to ensure continuous protections in your digital business.
- Adaptive to application dependencies: Security designed to adapt to your application so it can give you granular control and reduce risk by detecting and preventing threats based on overall understanding of your environment.
In the lab you will secure a cloud-native application (i.e. Sock Shop) and public cloud infrastructure using the earlier mentioned Cisco Solutions. You’ll stage the infrastructure, modify and deploy the application, instrument the security products into the environment. In the process, you’ll get your hands dirty with products and technologies including git, Kubernetes, GitLab, Docker, AWS and others.
What has been updated?
New: Cisco Validated Design

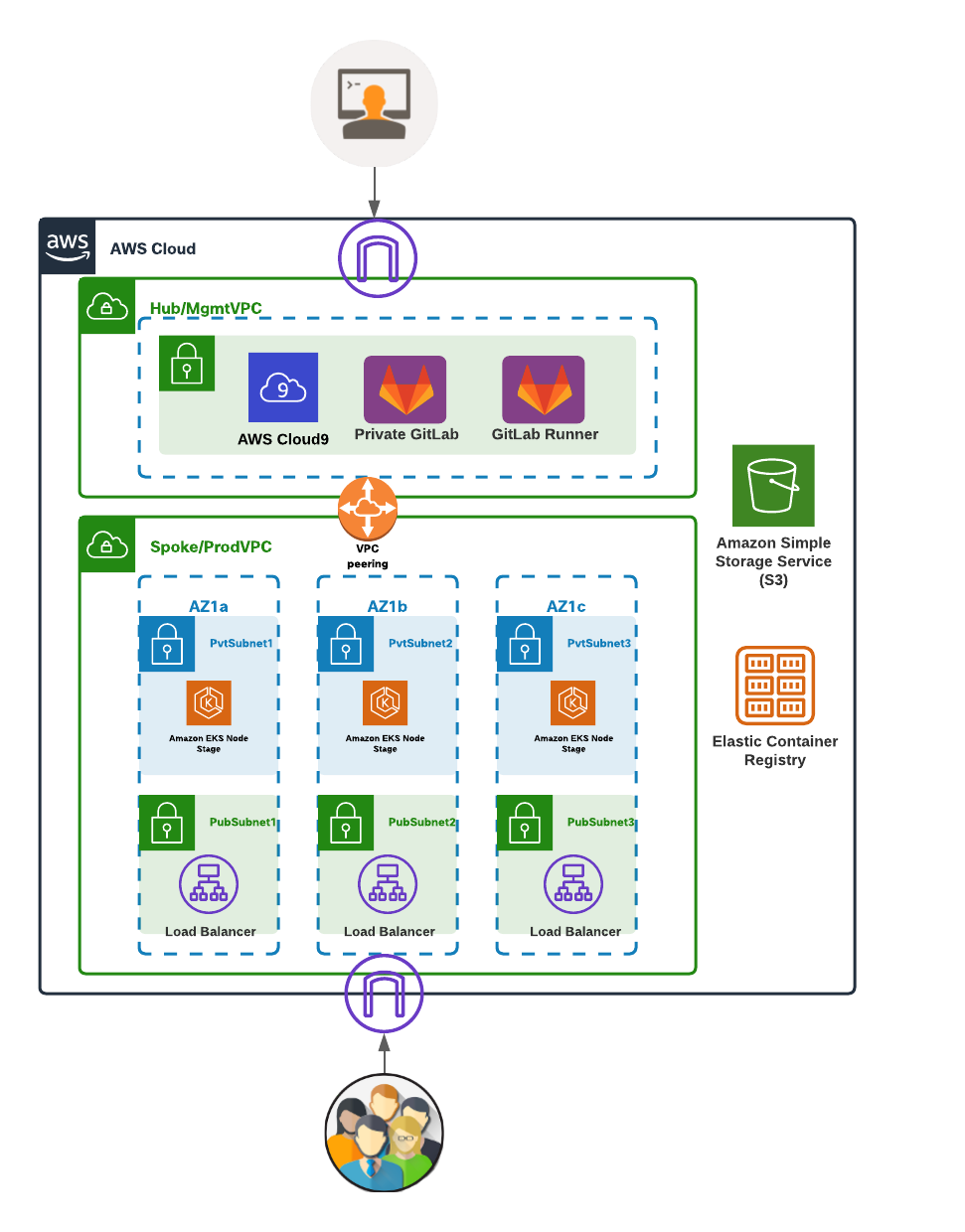

As mentioned, this lab has now been redesigned to follow the Cisco Validated Design “Securing Cloud-Native Applications – AWS Design Guide”. This lab uses AWS to host the workloads and applications and takes advantage of many of their native services. This diagram shows how the different components are logically connected:

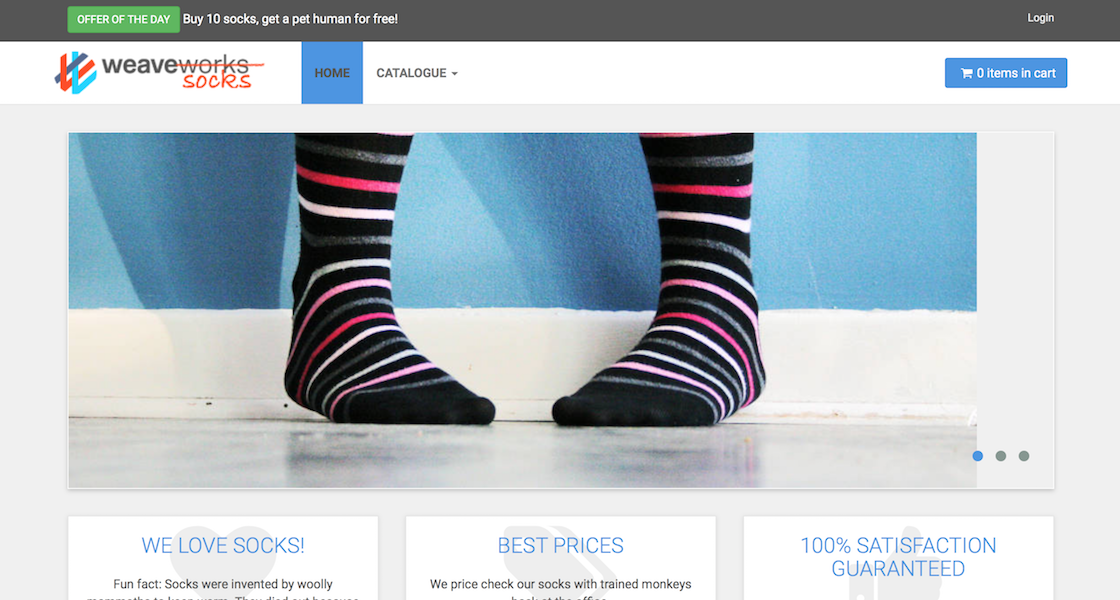

Now this diagram obviously doesn’t really show what the end user might see. Below you see a screenshot of the Sock Shop front end page. When first deployed, no security tools are installed yet!
New: GitLab
The lab has been updated to now include GitLab. The deployment of the Kubernetes cluster now works with a GitLab pipeline, to give an example of how this would look like in real world scenario. Pipelines are the top-level component of continuous integration, delivery, and deployment.
Pipelines comprise of jobs and stages:
- Jobs, which define what to do. For example, jobs that compile or test code.
- Stages, which define when to run the jobs. For example, stages that run tests after stages that compile the code.
In an yml file, you can define the scripts and the commands that you want to run. The scripts are grouped into jobs, and jobs run as part of a larger pipeline. You can group multiple independent jobs into stages that run in a defined order. You should organize your jobs in a sequence that suits your application and is in accordance with the tests you wish to perform. To visualize the process, imagine the scripts you add to jobs are the same as CLI commands you run on your computer to build, test and deploy your application.
New: Development script
Something else that is new is a deployment bash script that will automatically do all of the preparation steps for you. The nice thing about this is that if you only want to do the Secure Workload, Secure Cloud Analytics or only the Duo lab section, you can do that now. Before this lab was not that modular, and took in total at least 4 hours. To do this, all you need to do is run deployinfraforme from the AWS Cloud9 terminal window and you can choose. Obviously, we recommend going through the entire lab, since setting up the Kubernetes cluster is very educational.
Getting started
We hope that you are as excited as we are, and want to get started right away! To do so, make sure you have an AWS account and a DevNet Sandbox reserved. All of the lab instructions can be found here. If you need help, please be aware that we have a dedicated Application Security section in our Cisco Developer Community!
Related resources
- Catch up with Cisco Developer Advocate, Christopher Van Der Made, at his NDC Security Conference session on 4/3/22.
- Visit the DevNet Dev Center for Security to learn more about Cisco security APIs and tools for developers
We’d love to hear what you think. Ask a question or leave a comment below.
