As outlined in my first blog, there is a paradigm shift towards heterogeneous computing.  Key drivers being emergence of new workloads in the AI/ML domain requiring best of breed hardware and software framework.  While we are going to focus on system architecture trends and requirements driving the need of heterogenous compute, it is worth noting that on the software side similar trend is happening.  Plethora of code bases from x86/ARM/MIPS/RISCV, system and function libraries, embedded Kernels, deep learning frame works such as Caffe, TensorFlow, PyTorch dominate a software  platform to optimize the execution time.

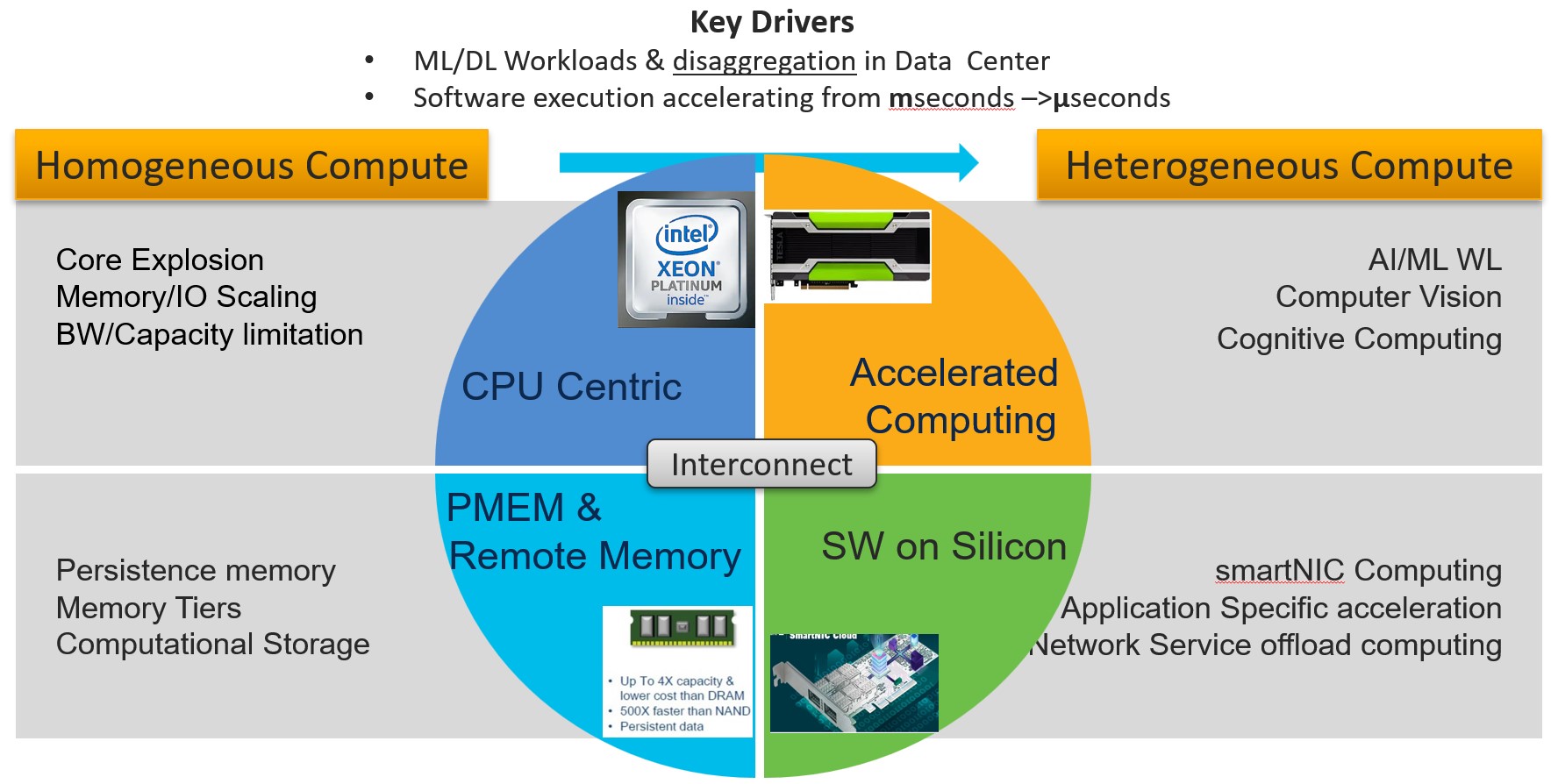

Heterogenous Computing

Heterogeneous computing brings the challenge of composability aspects of resources and IO interconnect that ties all these resources together. These resources can range from accelerated compute farms with specialized GPUs, sNIC computing subsystems  and data processing at the edge of, or near storage – AKA computational storage.  This compute everywhere model if not planned properly can result in wasted and replicated resources.

Entry level cost of accelerated computing such as GPU is very expensive.  So, it is essential from TCO perspective to have resources  that can be virtualized, composed and  shared on demand.  In essence new server architecture has to be dynamic and flexible where there are no captive resources & have ability to enable time shifted computing utilizing  resources 24/7.

Additionally, peer to peer communication between resources  for data movement bypasses central CPU eliminating need for  redundant data copying . It helps in reduction of  IO traffic on system bus  and  improves latency.

So, What IO fabric will tie heterogeneous subsystems together?   A Single IO fabric approach may not be able to cater to the divergent needs off data center. A multi-fabric architecture approach is essential.

Need for next Generation Interconnect

Ethernet is de-facto fabric in the data center for data ingestion into server from protocol aware IO/Storage traffic perspective. However, latency and coherency issues make it a poor choice at lowest tiers of  Load/Store IO which  usually  happens in 10s of nS.

In order to fully realize the potential of heterogeneous computing new IO fabric must have

  • Load/Store semantics alleviating need for software stack overhead in data transfer
  • Need for lower latency &  high bandwidth  -32/64/128Gbps and beyond.
  • Peer-peer communication,  and coherency
  • Seamless failover of resources  at the component level – Memory and/or @subsystem level
    • For example Network -NIC failover,
  • True fabric level command structure for disaggregation

While PCIe IO technology filled the latency needs early on, it was slow to evolve from speeds and feature perspective as core explosion led to IO bandwidth issues. Several proprietary and open-source efforts were made to create a new IO interconnect. However, none of them found traction at scale until the emergence of CXL (Compute Express Link) Interconnect. While high bandwidth  & Lo latency is paramount, it is the underlying protocol stack that needed overhaul for OS and applications to take advantage.  CXL  is  based  on the ubiquitous PCIe PHY layer and adds a efficient protocol stack that has a potential to enable  subsystem and component level disaggregation in the data center.

Memory Bandwidth (BW)

Perhaps biggest impact on IO interconnect is coming  due to the  challenges in  scaling memory bandwidth  as core count increases.

The number  of cores in processor is quadrupling from 32 to 128  and beyond in next couple of years. However, no of memory channels &  bandwidth will scale @1.5 -2 x causing mismatch in the  bandwidth per   core.  As  core count grows beyond 128,  incremental changes in memory channel speed will not be sufficient to maintain  bandwidth/core  ratio. To make matter worse, there will be spatial limitation beyond 12 channels per socket in  standard rack form factor. To overcome all these limitations requires de-coupling of memory from CPU. Of course, de-coupling of memory requires order of magnitude more interconnect bandwidth. Scaling that much bandwidth and making memory multi-tenant will require a different IO transport than electrical domain.  While we are still not there yet but in near future memory will become a network resource  & with sNIC/DPU computing, network is indeed becoming computer.

UCX X-Series architecture is an amalgamation of new ideas, trends, and some bets in cohesive fashion  to enable heterogeneous  computing. It solves the existing needs and enables  customers to adopt and extend hybrid cloud model as needed while balancing TCO.

In subsequent blogs, we will discuss about  “The holy grail- case for memory disaggregation” and “Need for non-electrical IO transport” for memory disaggregation.
