Written by Craig Pasek, Product Manager, Transceiver Modules Group, Cisco
Upgrading Seamlessly From 10G to 25G

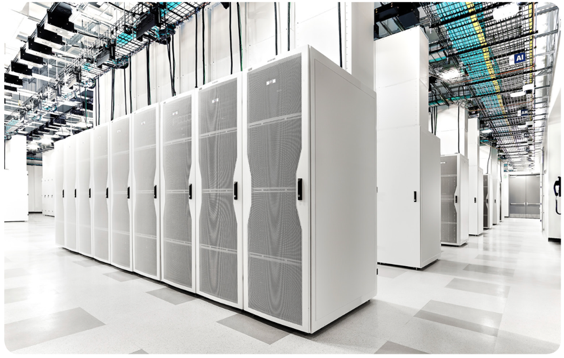

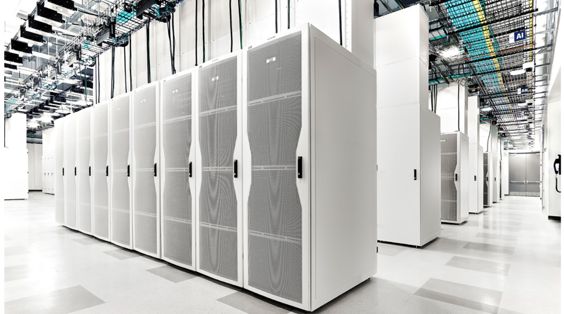

With exponential growth in Internet users and applications, data center traffic continues to experience explosive growth. Driven by increases in social networking, data and video content delivery, along with demanding business applications, are now pushing beyond the speed limits of traditional server and switch infrastructure. To meet these needs, data center (Figure 1) operators are now turning to mature, cost-effective 25G Ethernet technology, including new 25G switches and high-bandwidth servers with 25G Network Interface Cards (NIC).

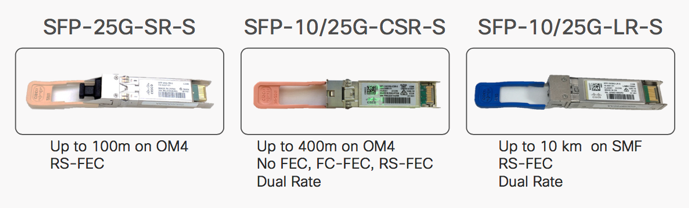

Cisco’s newest transceivers, including SFP-25G-SR-S, SFP-10/25G- CSR-S, and SFP-10/25G-LR-S (Figure 2) are enabling optical 25G transmission in data centers.
Data Center Network Architectures

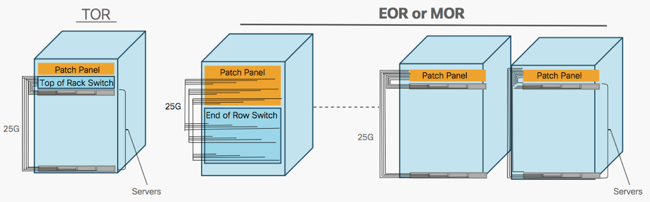

Next generation data center architectures are generally implemented in either Top-of-Rack (TOR), Middle-of-Row (MOR), or End-of-Row (EOR) configurations, with 25G between the switches and the servers and NICs (see Figure 3). The distance from the switches to a server or NIC generally ranges from half a meter to 100 meters. The 25G links are implemented with copper Direct-Attach Cables (DAC), Active Optical Cables (AOC) or transceivers, and Single-Mode Fiber (SMF) or Multi-Mode Fiber (MMF).
Many data center operators choose MMF or SMF transceivers and fiber, over DACs and AOCs, because they want to simplify and future-proof the cable infrastructure (see Figure 4). Using the pluggable modules, data center operators can easily replace transceivers or upgrade TOR, MOR and EOR switches, servers, NICs, and transceivers without replacing cabling infrastructure.
The Network Transformation to 25G

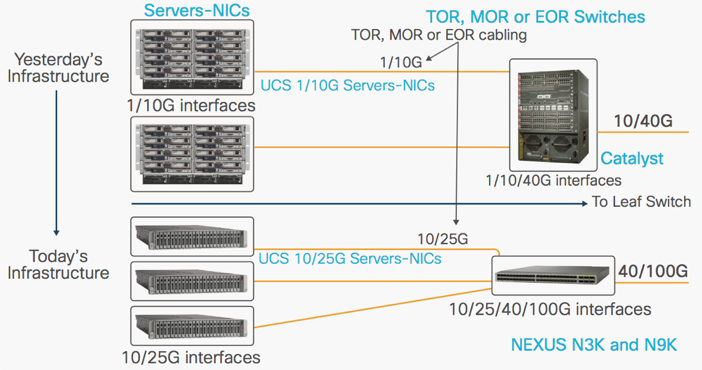

The data center architecture is dramatically transforming. Until recently, data centers consisted largely of 1/10G servers-NICs, and 1/10/40G EOR-MOR-TOR switches such as Cisco Catalyst switches that interface to the leaf switches to 10/40G uplink interfaces. Today, data centers are built with high-performance 10/25G servers-NICs, and 10/25/40/100G EOR-MOR- TOR switches, such as Cisco’s newest 10/25/40/100G Nexus 9000 Series and Cisco Nexus 3000 Series Switches that interface to the leaf using 40/100G interfaces (see Figure 5).
Forward Error Correction (FEC) For 25G transceivers

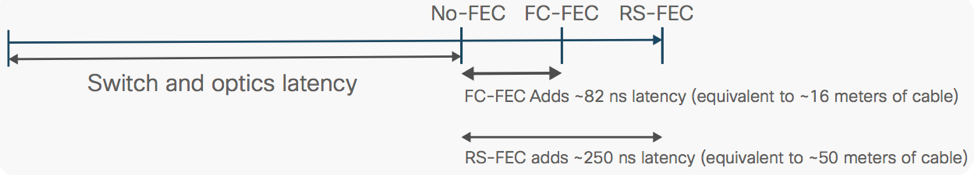

In order for data transmission to operate nearly error-free*, the IEEE 802.3by (IEEE-25G-SR) specifications and IEEE 802.3cc (IEEE-25G-LR) specifications call for Forward Error Correction (FEC) using RS-FEC (IEEE 802.3 clause 82), which can correct errors up to Bit Error Rate (BER) 5×10-5. The downside is that RS-FEC adds approximately 250ns of latency, which is equivalent to approximately 50 meters of cable. Links using FC-FEC (IEEE 802.3 clause 108) can correct errors up to BER 10-8; however FC-FEC adds 82ns of latency, which is equivalent to approximately 16 meters of cable (see Figure 6).
*Note: Higher level protocols can efficiently deal with “nearly error-free” transmission when the BER is less than 10-12
Cisco Short Reach “CSR” Technology Enables a Low-Latency Data Center
Low-latency may be critical for financial applications.
With advanced Cisco Short Reach “CSR” technology, SFP-10/25G-CSR-S can be used in data centers to reduce latency by using no FEC, FC-FEC, or RS-FEC at these distances:
- None: Up to 30m over OM3 (or up to 50m over OM4)
- FC-FEC: Up to 70 m over OM3 (or up to 100 m over OM4)
- RS-FEC: Up to 300 m over OM3 (or up to 400 m over OM4)
Use of FC-FEC is also a valuable feature for older-generation switches and NIC cards that don’t have support for RS-FEC but still need to operate at 25 Gigabits over longer distances than available by using a DAC or AOC.
In order to achieve the transmission with FC-FEC or no FEC, an SFP- 10/25G-CSR-S must be used on both ends of the link and the host needs to operate at the same FEC.
Future-Proofing Data Centers With Dual-Rate 10/25G Technology

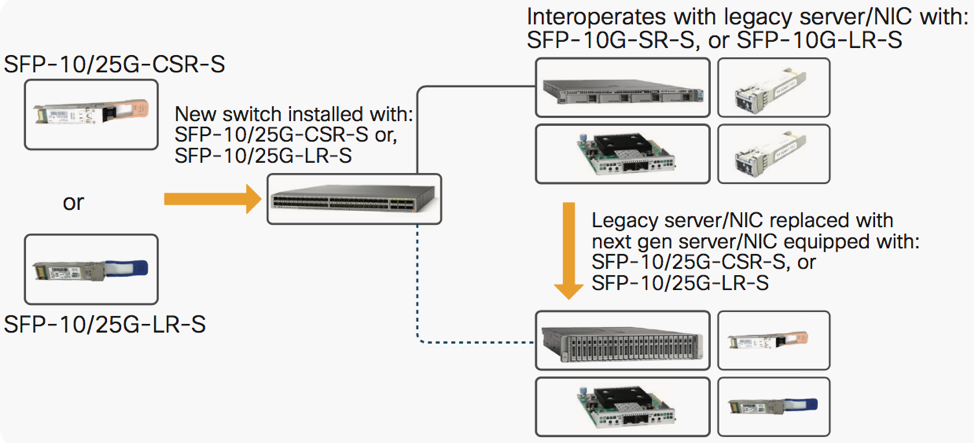

To future-proof the network, the new SFP-10/25G-CSR-S and SFP-10/25G-LR-S transceivers have a dual-rate capability that allows interoperability with 10G-SR MMF transceivers* and 10G-LR SMF transceivers. This allows a data center to be incrementally upgraded at either the end of the fiber (server, NIC, or switch) with a full upgrade to 25G when the time is right (see Figure 7).
The supported distances of the SFP-10/25G-CSR-S, when used with IEEE 25G-SR, is limited to 70m over OM3 (100m over OM4).
*Note: May require a 4 dB attenuator to be fully IEEE compliant
Interoperability With 40G and 100G

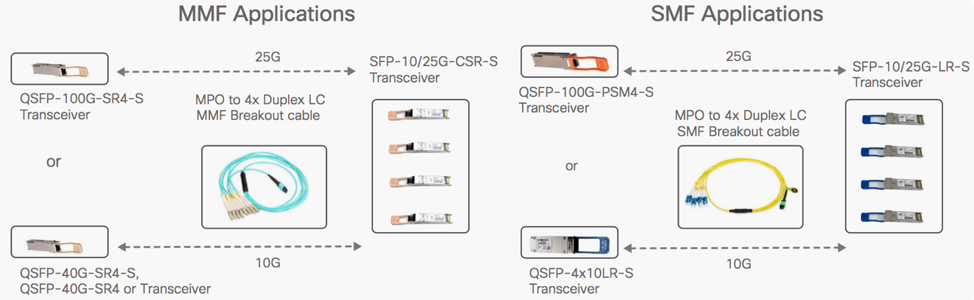

In some circumstances, the TOR, MOR or EOR switch may only have Quad Small Form-Factor Pluggable (QSFP) interfaces. With the new SFP-10/25G- CSR-S, a switch can also interoperate with Cisco QSFP-40G-SR4* or Cisco QSFP-40G-SR4-S transceivers at 4x10G or with Cisco QSFP-100G-SR4-S transceivers at 4x25G using MMF breakout cables. Conversely, the new SFP-10/25G-LR it can also interoperate with a Cisco QSFP-4x10G-LR4-S transceiver at 4x10G or with Cisco QSFP-100G-PSM4-S transceivers at 4x25G using SMF breakout cables that would be plugged into the TOR, MOR or EOR switch. For 100G interoperability, 25G requires the usage of RS-FEC, which has been standardized for 100G operation.
*Note: May require a 4 dB attenuator to be fully IEEE compliant
The Cisco Family of 25G Transceivers For Data Center Applications
Table 1 summarizes the full line of Cisco transceivers and cables for data center applications.
For more information on Cisco’s 25G transceivers read the Cisco 25GBASE SFP28 Modules Data Sheet here.
