The Cisco UCS® C460 M4 Rack Server continues its tradition of Industry leadership with the new announcement of the best non-clustered TPC-H benchmark result at the 1000GB scale factor, in concert with Microsoft SQL Server 2014 Enterprise Edition.

The Cisco UCS® C460 M4 Rack Server captured the number-one spot on the TPC-H benchmark at the 1000GB scale factor with a price/performance ratio of $0.97 USD per QphH@1000GBand demonstrated 588,831 queries per hour (QphH@1000GB), beating results from Dell, Fujitsu, and IBM.

The TPC-H benchmark evaluates a composite performance metric (QphH@size) and a price-to-performance metric ($/ QphH@size) that measure the performance of various decision-support systems by running sets of queries against a standard database under controlled conditions. For the benchmark, the server was equipped with 1.5 TB of memory and four 2.8-GHz Intel Xeon processor E7-4890 v2 CPUs. The system ran Microsoft SQL Server 2014 Enterprise Edition and Windows. Check out the Performance Brief for additional information on the benchmark configuration. The detailed official benchmark disclosure report is available at the TPC Results Highlights Website.

Some of the key highlights of Cisco’s TPC-H Benchmark results are:

  • The Cisco UCS® C460 M4 Rack Server delivered the highest TPC-H result ever reported for non-clustered systems at the1000-GB scale factor.
  • High Performance for Microsoft SQL Server 2014: Cisco’s result is the fastest server at the 1000-GB scale factor running Microsoft SQL Server.

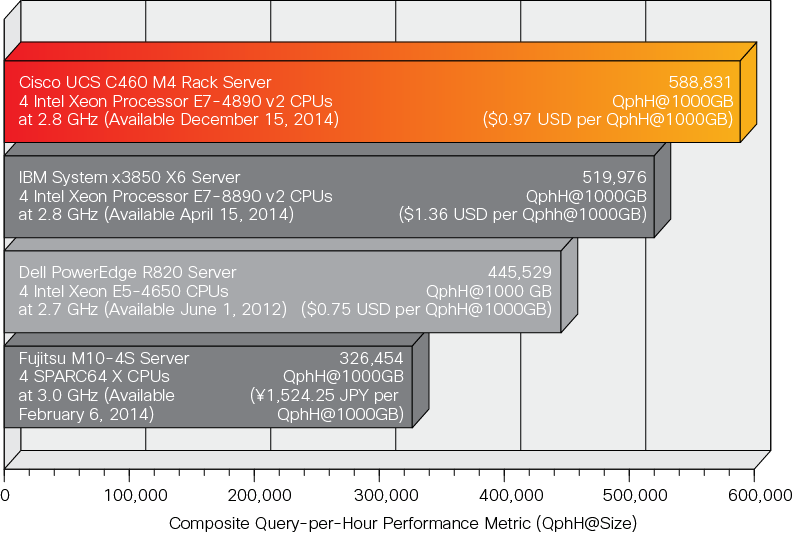

  • As illustrated in the graph below, the Cisco performance result beats Fujitsu, Dell, and IBM top results for the 1000-GB scale factor by 80, 31, and 13 percent respectively. Cisco’s price/performance ratio is 29 percent less than the IBM result



C460 TPC-H Results
It is interesting to note that although all vendors have access to same Intel processors, only Cisco UCS unleashes their power to deliver high performance to applications through the power of unification. The unique, fabric-centric architecture of Cisco UCS integrates the Intel Xeon processors into a system with a better balance of resources that brings processor power to life. For additional information on Cisco UCS and Cisco UCS Integrated Infrastructure solutions please visit Cisco Unified Computing & Servers web page.

Disclosure

The Transaction Processing Performance Council (TPC) is a nonprofit corporation founded to define transaction processing and database benchmarks, and to disseminate objective and verifiable performance data to the industry. TPC membership includes major hardware and software companies. TPC-H, QphH, and $/QphH are trademarks of the Transaction Processing Performance Council (TPC). The performance results described in this document are derived from detailed benchmark results available as of December 15, 2014, at http://www.tpc.org/tpch/default.asp.



Authors

Girish Kulkarni

Senior Marketing Manager

Data Center & Virtualization Marketing
