Have You Ever Considered CI/CD as a Service (Part 2): Creating a Complete CI/CD Environment in Minutes


June 27, 2018 - 2 Comments

In a previous post we introduced CI/CD as a Service (CD/CDaaS) and talked about how it can transform and increase the efficiency of your DevOps practice, that can now serve development and Line Of Business (LoB) teams better.

In this post we will show how to effectively create a CI/CDaaS with Cisco CloudCenter, either for an organizations’ internal use or to offer it to your customers, in case you’re an IT service provider.

With our CI/CDaaS we will be able to:

  • Automate the creation of a complete environment for a development project, including
    • a source code repository (we chose SVN, but it could be GitLab or any other),
    • an integration server/orchestrator (Jenkins),
    • an artifact repository for the builds (e.g. JFrog Artifactory or Nexus, but it could be any solution including a simple web server or an FTP server)
    • a number of workstations (one per developer) ready to be used with all the needed tools: Eclipse, database tools, etc.
    • a remote desktop access to the workstations, even if the developers don’t have access to the network where the project environment is created
  • Integrate all the above tools end-to-end, creating a complete chain for CI/CD with no human intervention required.
  • Get every build – generated automatically after any commit in the source code repository – deployed automatically in one of your targets, selected according to the project phase, e.g. development in an on-premises VMware environment, integration test in on-premises OpenStack, and production in AWS public cloud.
  • Get acceptance tests – required to promote a deployment to the next phase/environment – executed automatically after each deployment in one of the environments.

Everything we describe is implemented using Cisco CloudCenter as the main orchestration engine, in a multicloud context, meaning you can select any private or public cloud as a target for the deployment).

The next picture represents a project leader ordering the deployment of the CI/CD toolset for two distinct projects, possibly in different clouds.

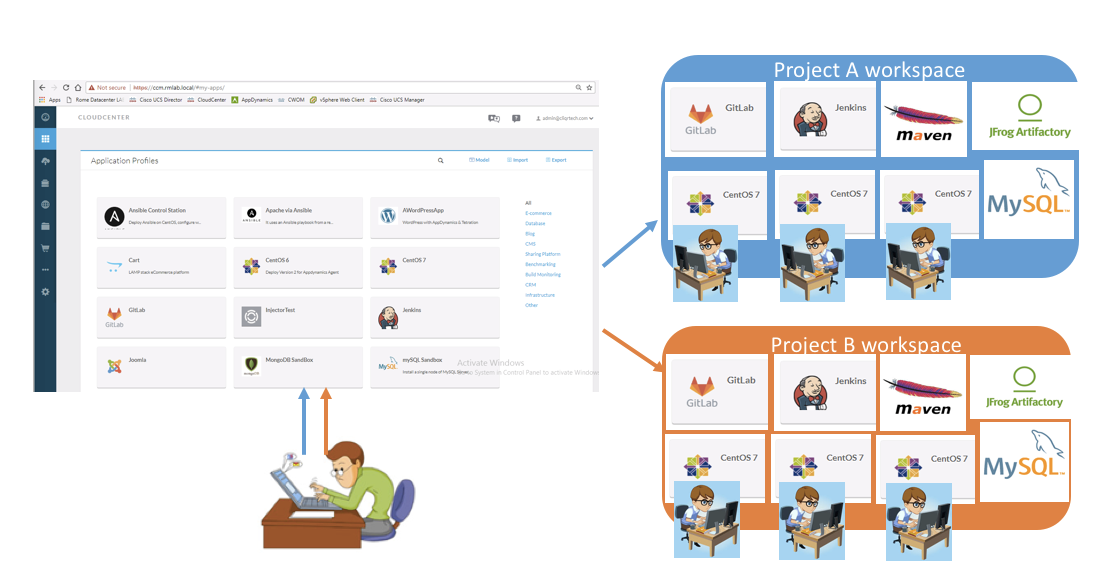

Creating a complete chain for CI/CD with no human intervention, for two different tenants, with CloudCenter

Creating a complete chain for CI/CD with no human intervention, for two different tenants, with CloudCenter

Step 1: Self-service in the CloudCenter catalog

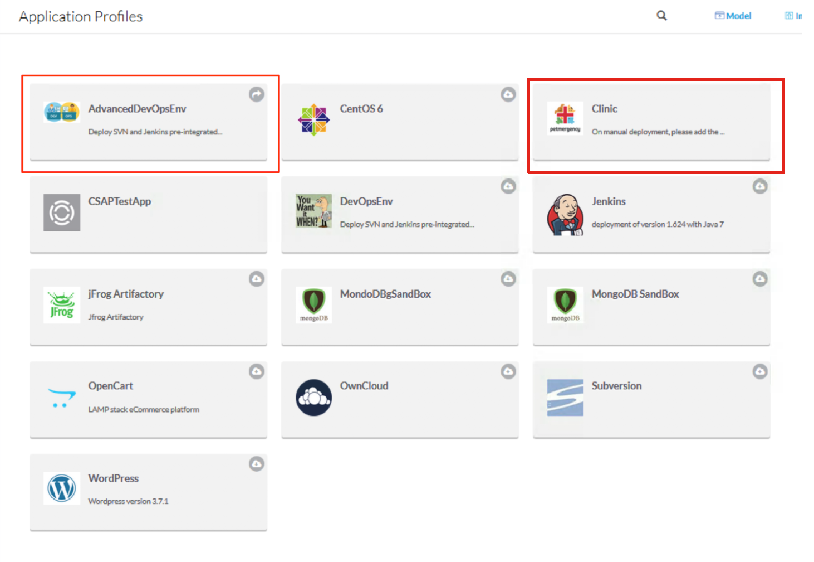

Accessing the self-service catalog in CloudCenter, the user can order the deployment of a single application or a complex set of components, like our CI/CDaaS service (we call these Application Profiles):

Application Profiles in the self-service catalog

Application Profiles in the self-service catalog

As you can see from the image above, we have created 2 Application Profiles for this demo. The use case is having a development team that releases daily builds of a web application (PetClinic), so we have built:

1.  A cloud-agnostic Application Profile to deploy PetClinic, that takes the binary files required for the deployment from a common repository (that will be the Artifactory server created by our CI/CD service described below). The name of this Application Profile (that is a service in the CloudCenter catalog) is “Clinic”. You can select one specific version of the application binaries that you want to deploy from the Artifactory repository (by default you use the last build available).
Please note that we will not focus on the way a generic Application Profile is built and deployed, because it’s covered in the CloudCenter documentation, but PetClinic is functional in our example as developers will generate new builds that need to be deployed.

2.  A cloud-agnostic Application Profile to deploy the CI/CD toolset including SVN, Jenkins  and Artifactory, installed in their own VM. The name of this service in the CloudCenter catalog is “AdvancedDevOpsEnv”; it creates an operating project environment where the “Clinic” application can be deployed automatically at every new commit made by a developer.This is the implementation of our CI/CDaaS concept.

Step 2: Deploying the CI/CD toolset

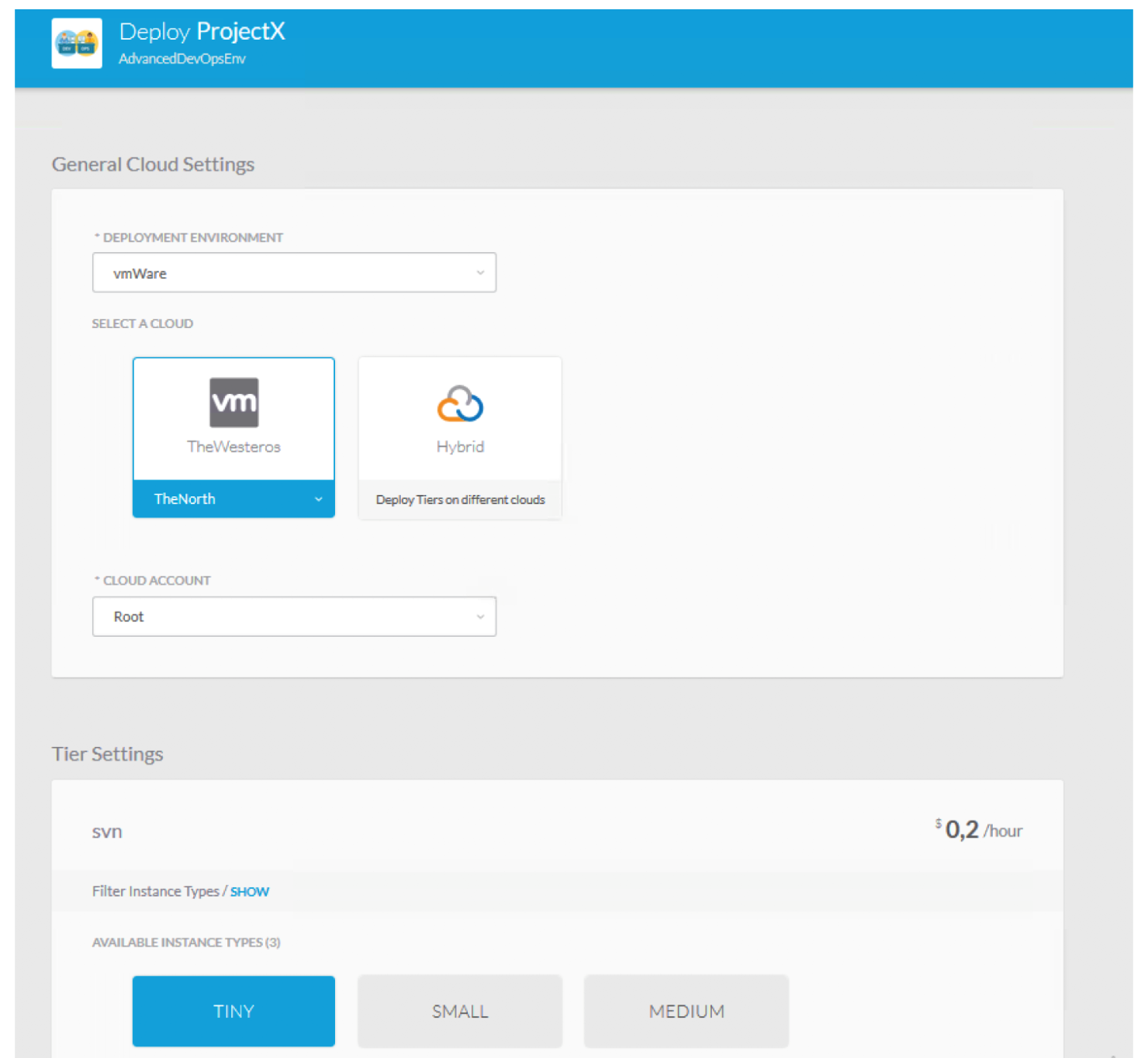

When you “order” the AdvancedDevOpsEnv service you have to set the name of the new project and some options for the deployment (which cloud target, the amount of resources to be allocated when VM or containers are created, etc.); the next picture shows the order wizard in CloudCenter, where you make these selections.

CloudCenter order wizard: you can choose where to deploy the CI/CD toolset and the size of each VM

CloudCenter order wizard: you can choose where to deploy the CI/CD toolset and the size of each VM

You can monitor the progress of the deployment while the job runs (it takes approximately 15 minutes to complete) as you can see in the image below:

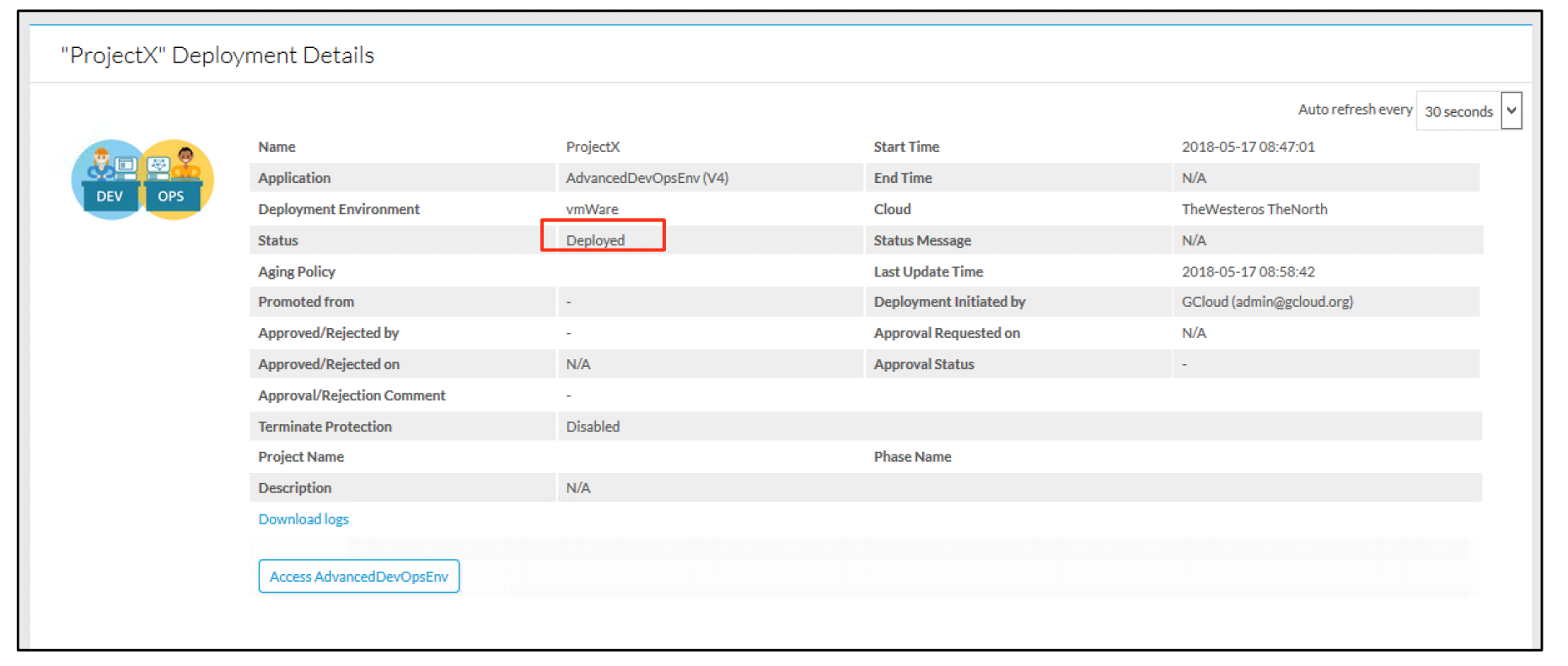

Watching the progress in CloudCenter: last deployment state is “Deployed”

Once the deployment is complete, you can see the details of the new VM that has been created by clicking on the server representation on the left (e.g. Jenkins – see next picture) and expanding the list of running nodes on the right.

Please Note:

  • The IP address of the VM is exposed by CloudCenter.
  • You can access the VM via SSH or RDP directly from the browser (that is very important because connectivity and security are proxied by CloudCenter, so you don’t really need any access to the actual network where the VM is deployed).

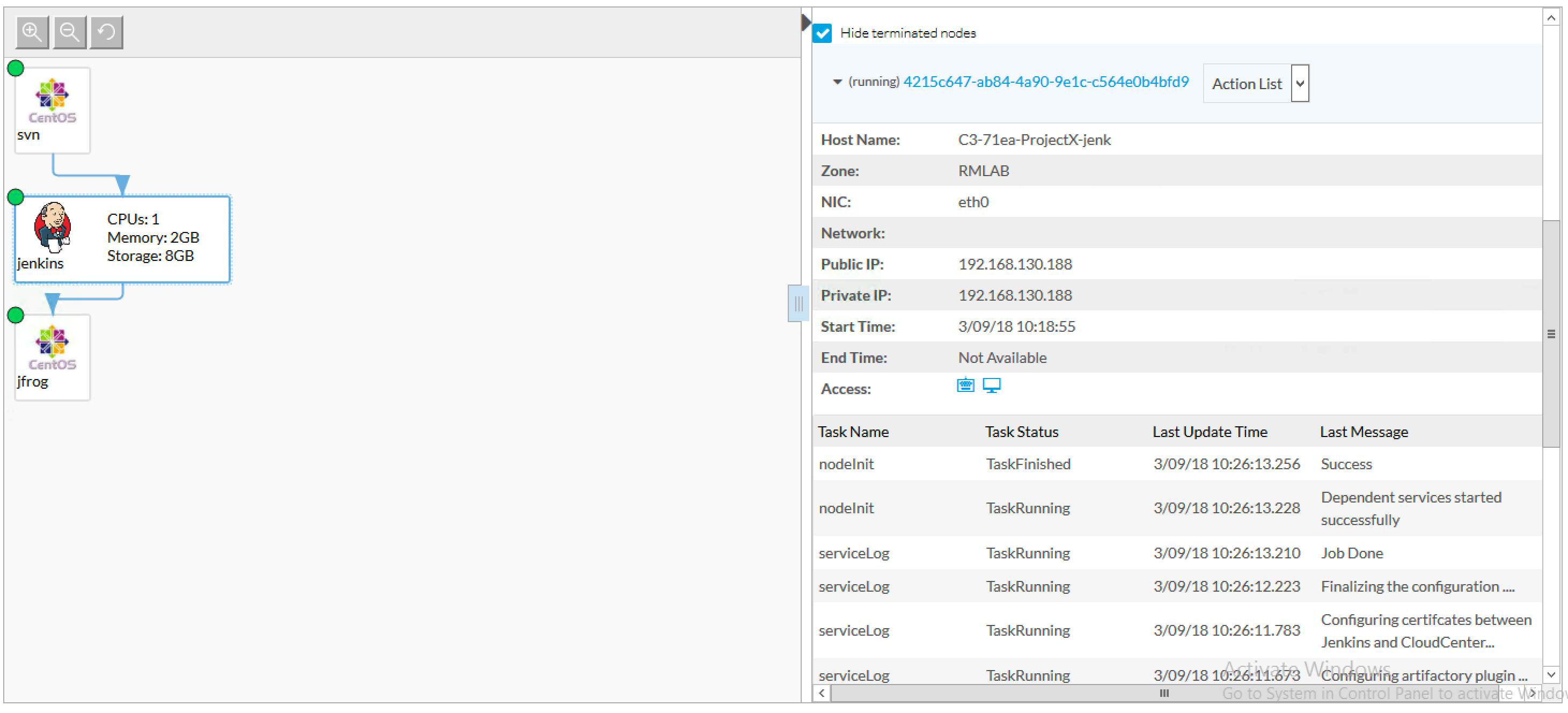

Accessing the details of the VM and the log of actions executed by the agent

Accessing the details of the VM and the log of actions executed by the agent

Step 3: verifying the configuration made by CloudCenter

The Jenkins orchestrator is automatically setup with a connection to the SVN source code repository (see the Jenkins job “repo1”, that is the name provided by the user for the repository when he ordered the deployment) and with Cloud Center (see the Jenkins job “deploy”).

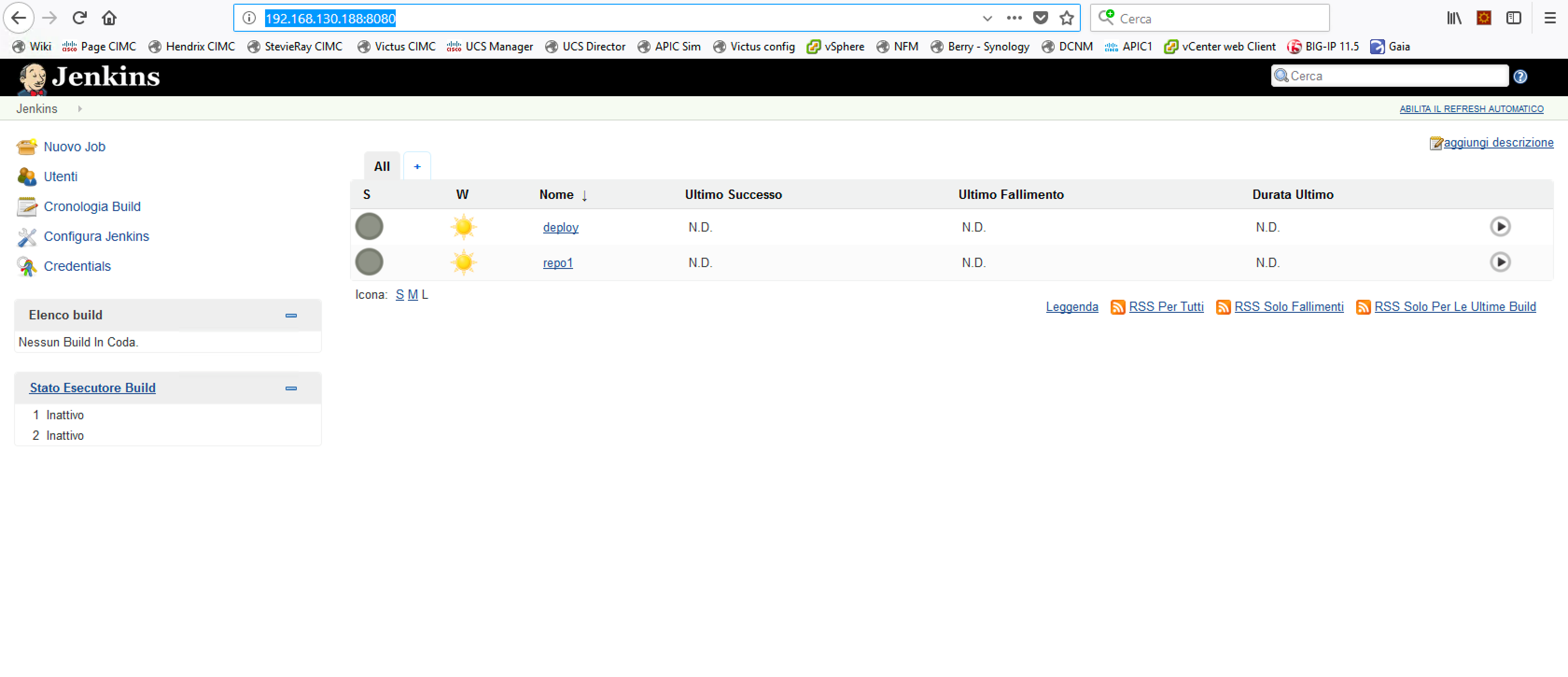

The Jenkins orchestrator and the 2 tasks created by CloudCenter

The Jenkins orchestrator and the 2 tasks created by CloudCenter

The only manual configuration we need is to set the login and password used by CloudCenter to access the SVN repository (we were not able to automate this configuration): You just need to click on the Jenkins task repo1 (next picture), then click Configure and enter your credentials (in our example, user001/C1sco123). At this point, Jenkins is fully configured and ready to go.

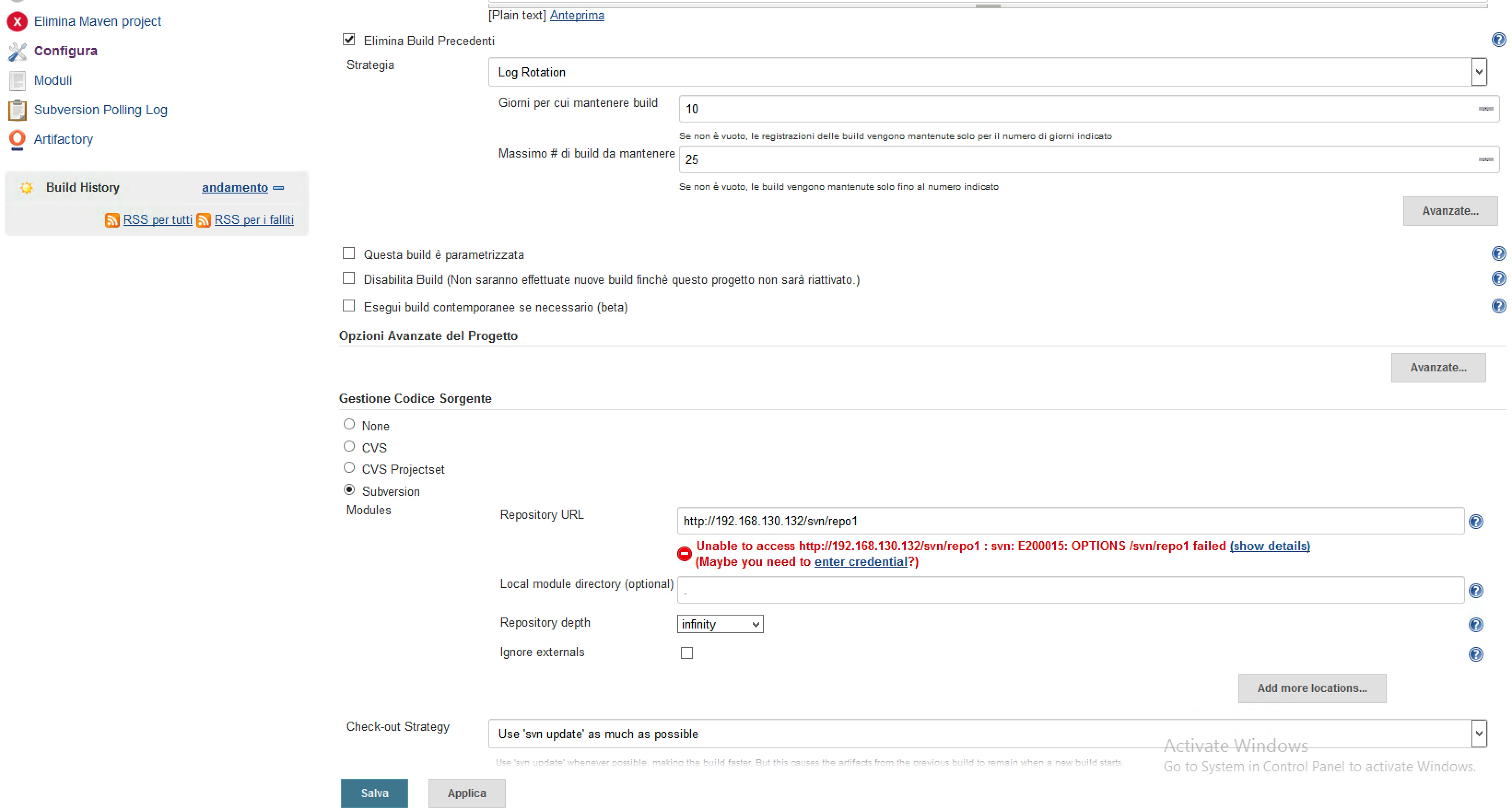

Jenkins: setting credentials to access the SVN repository

Jenkins: setting credentials to access the SVN repository

The jFrog Artifactory is also ready to receive binaries from Jenkins, at each new build of the application, because CloudCenter sets the required information when configuring Jenkins and Artifactory. Note that the Artifactory repository name (repo1) is the name used for the SVN repository, provided by the user when he ordered the deployment.

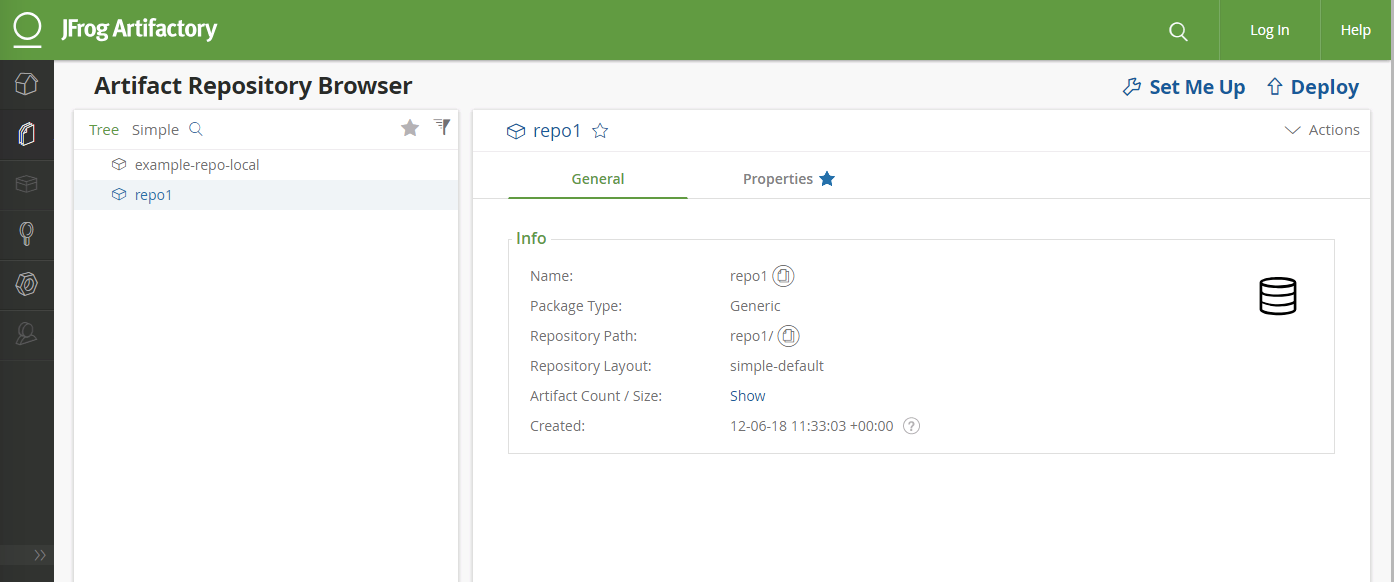

The Artifactory repository for binaries (it will host all the builds generated by Jenkins)

The Artifactory repository for binaries (it will host all the builds generated by Jenkins)

Finally, we configure a new Repository in CloudCenter (there might be many), that needs to point at our new Artifactory repository to deploy new builds of your application automatically as they are released.

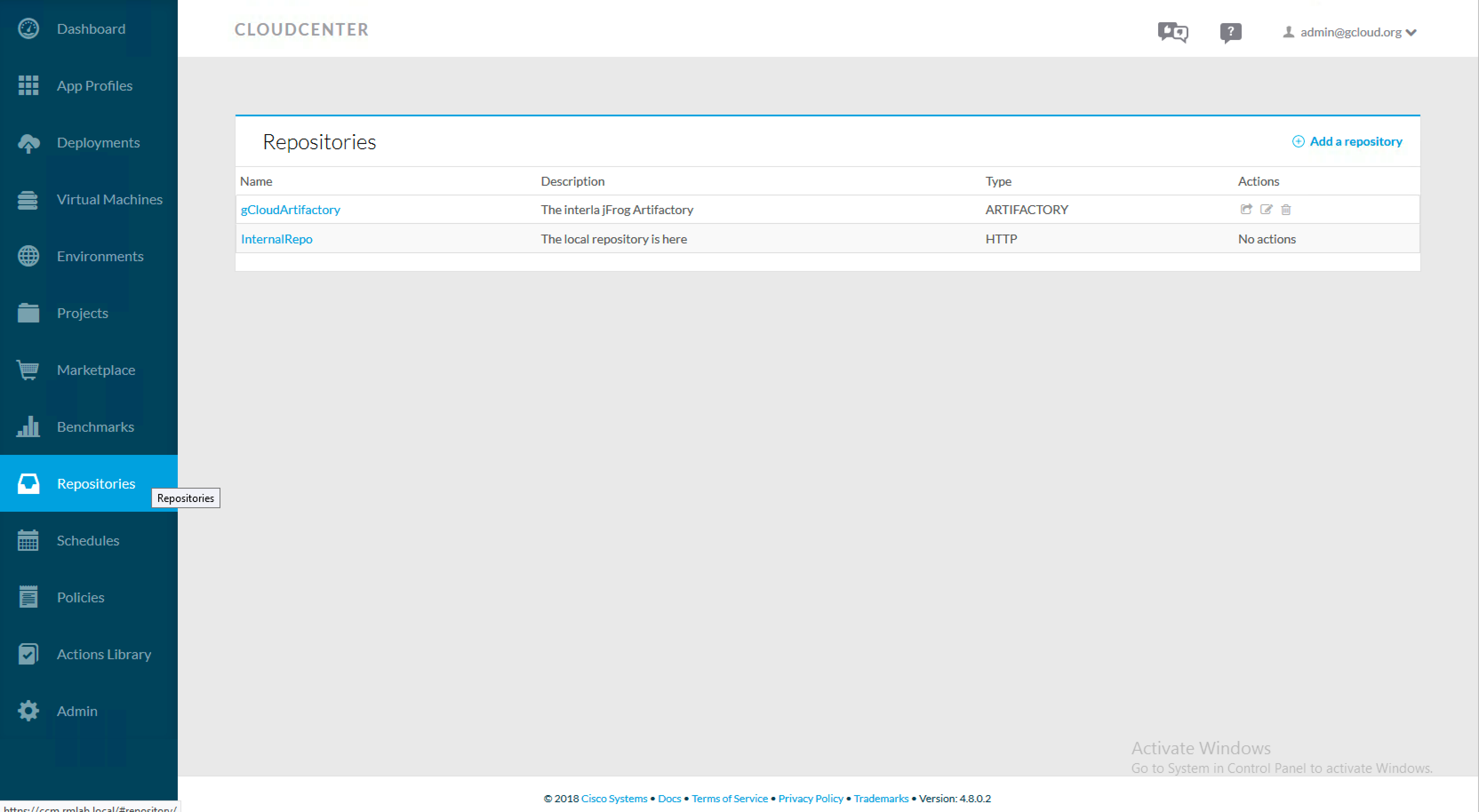

Cloud Center: setting up a repository for the artifacts that will be deployedCloud Center: setting up a repository for the artifacts that will be deployed

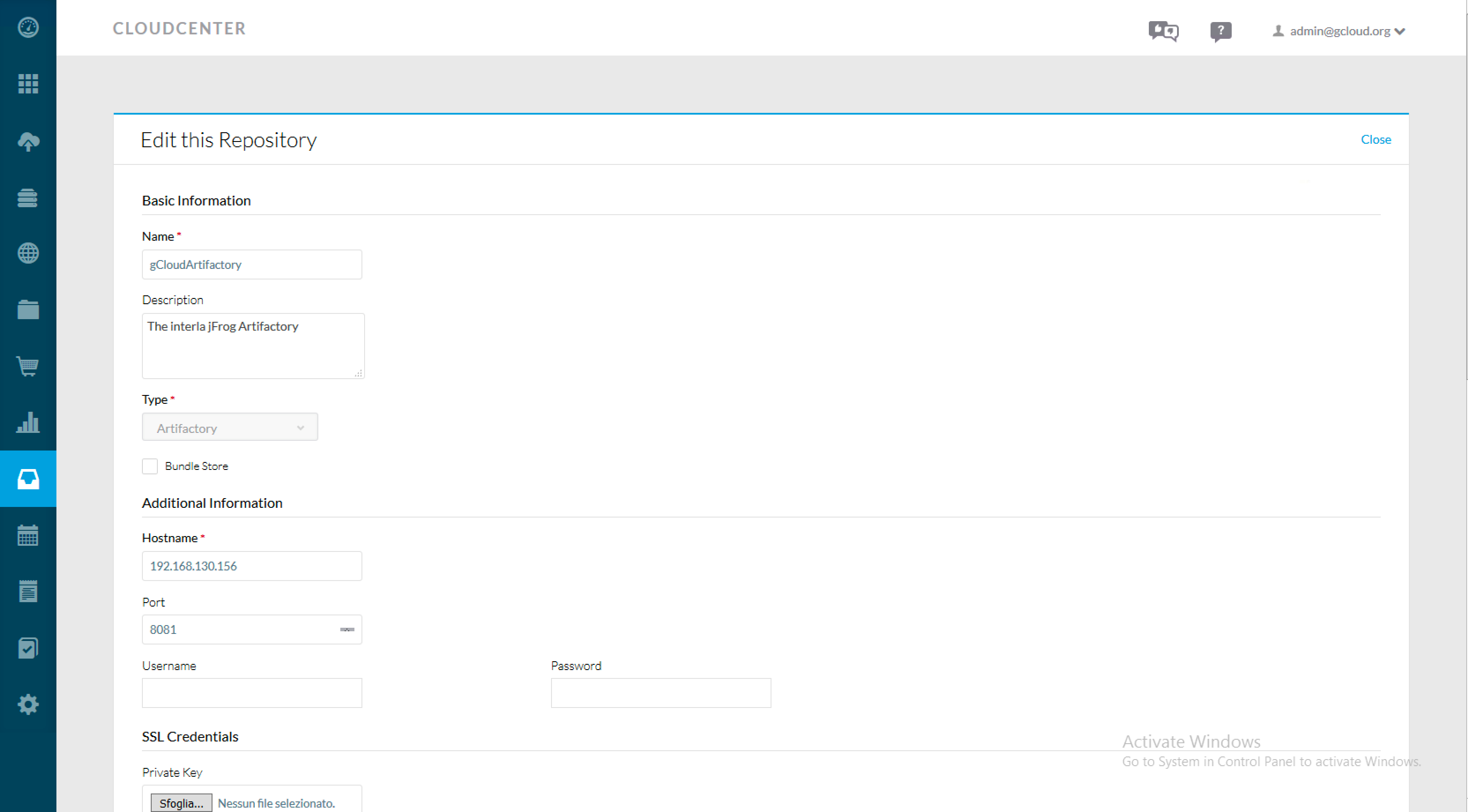

Here we set the IP address of the Artifactory server:

Setting up the repository on Cloud CenterSetting up the repository on Cloud Center



We have now completed the setup of a CI/CD environment for a new project in 15 minutes.

The whole idea of CI/CDaaS is nothing more than the concept of being able to replicate that exact process with an “as a service” approach, quickly and easily, for different internal teams, depending on the requirements.



In the next post will show how to use it, following the lifecycle of the PetClinic application from editing the source code to automated deployment.



Credits

This post is co-authored with a colleague of mine, Stefano Gioia.
