Microsegmentation with Cisco ACI


December 9, 2015 - 3 Comments

Modern data centers are under unrelenting attack. East-west traffic security breaches are happening every day. According to Cisco, 75 percent of all attacks take only minutes to begin stealing data but take longer to detect.   Once discovered, several weeks may pass before full containment and remediation are achieved. Today’s data centers require a variety of “tools” to deal with sophisticated attack vectors. Network segmentation is a proven tool deployed in data centers.

While the broad constructs of segmentation are relevant, today’s application and security requirements mandate increasingly granular methods that are more secure and operationally simpler. This has led to the evolution of “microsegmentation” to address the following:

  • Programmatically define segments on an increasingly granular basis allowing greater flexibility using attributes
  • Automatically program segment and policy management across the entire application lifecycle (deployment to de-commissioning)
  • Quarantine compromised endpoints and limit lateral propagation of threats
  • Enhance security and scale by enabling a Zero-Trust approach for physical, virtual and container workloads.

Cisco’s Application Centric Infrastructure (ACI) takes a very elegant approach to microsegmentation with policy definition separating segments from the broadcast domain.

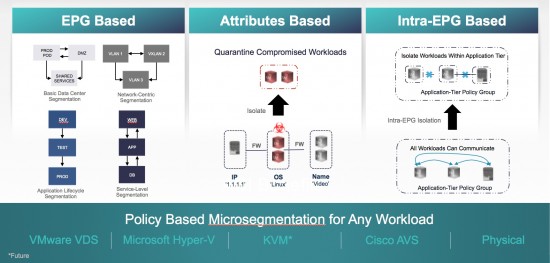

Figure 1useg image

It uses an application-aware construct called End-Point Group (EPG) that allows application designers to define the group of endpoints that belong to the EPG regardless of their IP address or the subnet they belong to (Figure 1).  Further, the endpoint can be a physical server, a virtual machine, a Linux container or even legacy mainframes – i.e. the type of endpoint is normalized, thereby offering great simplicity and flexibility in their treatment.

Cisco ACI provides consistent micro-segmentation support for VMware VDS, Microsoft Hyper-V virtual switch, KVM*and bare-metal endpoints and containers, which allows granular endpoint security enforcement.  Customers can dynamically enforce forwarding and security policies, quarantine compromised or rogue end points based on virtual machine attributes (such as Name, Guest OS, VM Identifier) and/or network attributes (such as IP address), and also remediation places cleaned end-points back to base EPG.

Key Benefits

ACI micro-segmentation allows users to create micro-segments across multiple VMM and physical domains in a consistent policy driven framework, that allows operational flexibility and choice for customers.

  • Micro-segmentation for any multi-tiered application with physical or virtual workloads across any hypervisors
  • Use the same policy model to isolate workloads for vSphere, Hyper-V, OpenStack, Containers, and bare metal servers.
  • Micro-segmentation classification can use workload attributes such as Virtual-machine attributes and Network (IP, MAC) attributes providing finer grained control at the individual virtual machine(s) level.
  • Hypervisor agnostic Intra-EPG isolation policy across VMs and bare metal
  • Simple, automatic creation of a quarantine security zone for a multi-tiered application when a rogue end point or threat is identified and automated remediation.

Use Cases

Micro-segmentation to Quarantine Vulnerable VMs Across Multi-Hypervisor
  • Use common policy automation to secure workloads even across mixed environment of hypervisors and bare metal servers
  • Isolate rogue VM or threat within a bridge domain or End Point Group
Micro-segmentation of a Multi-tiered Application with L4-L7 Service Insertion
  • Insert L4-L7 load balancer or firewall services between micro-segments defined using workload VM or network attributes.
Micro-segmentation of a Multi-tiered Ap­­plication for Remediation
  • Insert L4-L7 load balancer or firewall services between micro-segments defined using workload VM or network attributes.

Cisco ACI micro-segmentation can provide enhanced security for east-west traffic within the data center. Its true value lies in its integration with application design and holistic network policy, and transparent interoperability with a wide variety of hypervisors, bare-metal servers, Layer 4 through 7 devices, and orchestration platforms.

For More Information:

Video: Cisco ACI and IT Security Automation Saves the Day

White Paper: Data Center Microsegmentation: Enhance Security for Data Center Traffic
