Apache Darkleech Compromises

Dan Goodin, editor at Ars Technica, has been tracking and compiling info on an elusive series of website compromises that could be impacting tens of thousands of otherwise perfectly legitimate sites. While various researchers have reported various segments of the attacks, until Dan’s article, no one had connected the dots and linked them all together.

Dubbed “Darkleech,” thousands of Web servers across the globe running Apache 2.2.2 and above are infected with an SSHD backdoor that allows remote attackers to upload and configure malicious Apache modules. These modules are then used to turn hosted sites into attack sites, dynamically injecting iframes in real-time, only at the moment of visit.

Because the iframes are dynamically injected only when the pages are accessed, this makes discovery and remediation particularly difficult. Further, the attackers employ a sophisticated array of conditional criteria to avoid detection:

  • Checking IP addresses and blacklisting security researchers, site owners, and the compromised hosting providers;
  • Checking User Agents to target specific operating systems (to date, Windows systems);
  • Blacklisting search engine spiders;
  • Checking cookies to “wait list” recent visitors;
  • Checking referrer URLs to ensure visitor is coming in via valid search engine results.

When the iframe is injected on the page, the convention used for the reference link in the injected iframe is IP/hex/q.php. For example:

129.121.179.168/d42ee14e4af7a0a7b1033b8f8f1eb18a/q.php

The nature of the compromise coupled with the sophisticated conditional criteria presents several challenges:

  • Website owners/operators will not be able to detect or clean the compromise as (a) it is not actually on their website, and (b) most will not have root-level access to the webserver;
  • Even if website owners/operators suspect the host server may be the source, they would still need to convince the hosting provider, who may discount their report;
  • Even if the hosting provider is responsive, the malicious Apache modules and associated SSHD backdoor may be difficult to ferret out, and the exact method will vary depending on server configuration;
  • Since SSHD is compromised, remediation of the attack and preventing further occurrences may require considerable procedural changes that, if not carried out properly, could cause a privilege lockout for valid administrators or be ineffective and lead to continued compromise.

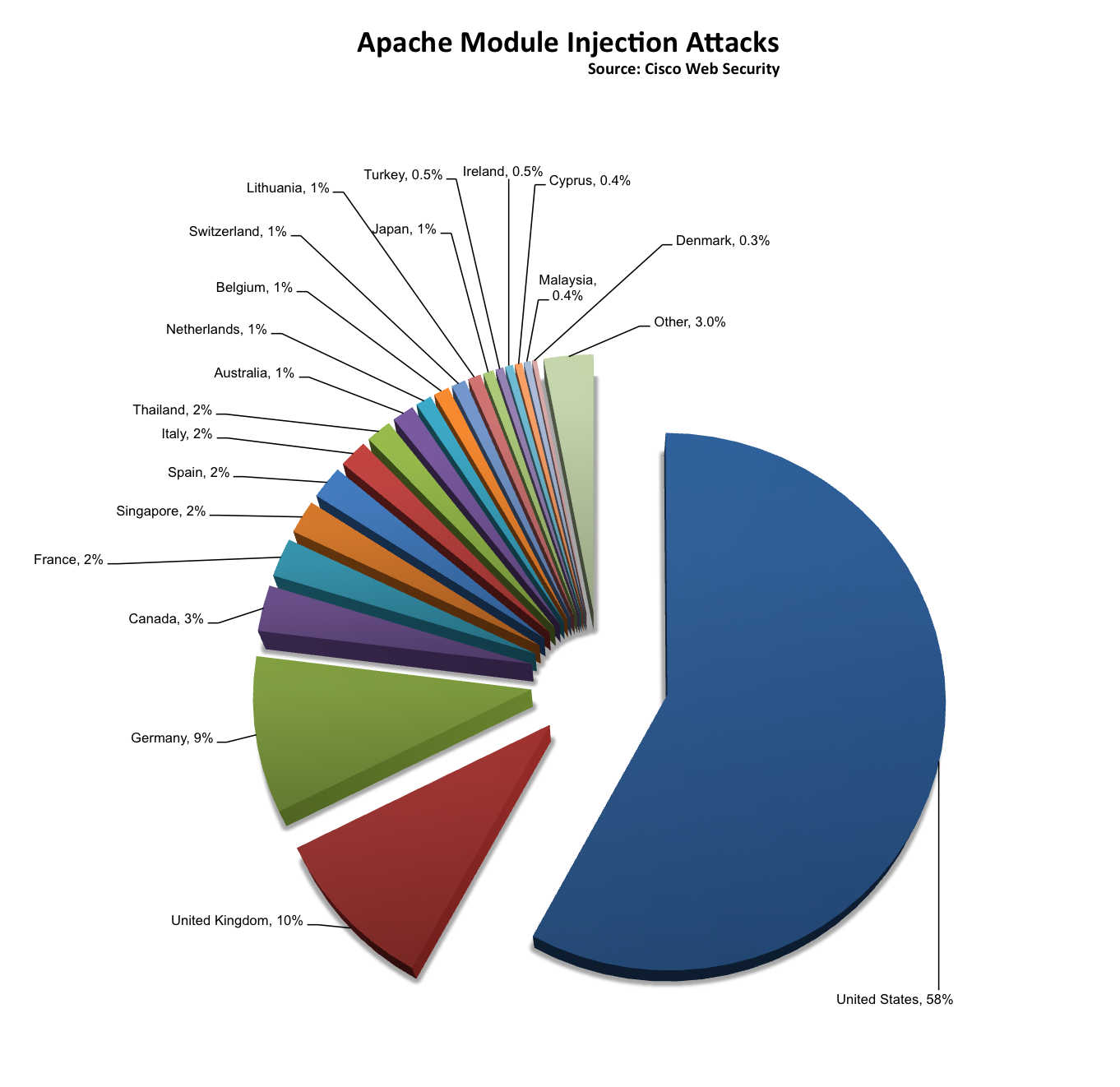

The magnitude of the problem becomes clear when one considers how widespread these attacks are.  The following chart illustrates the geographic location of infected host servers observed from February 1–March 15, 2013. (Click the chart to view in full size).

Apache_injection_attacks

For additional info and links to specific remediation advice, see: Ongoing malware attack targeting Apache hijacks 20,000 sites

Tags: , , , , , ,

In an effort to keep conversations fresh, Cisco Blogs closes comments after 60 days. Please visit the Cisco Blogs hub page for the latest content.

18 Comments.


  1. http://ondailybasis.com/blog/?p=1368

    It’s an old blackmarket module for apache. It requires you already have root on the system to install.

    I find it hard to believe no one took the 5 minutes to google this, find the site, and buy a copy of it if they were so inclined. :(

       2 likes

  2. Mary Landesman

    Hi Erik: Thank you for your comment. The module you reference is named “Darkleech”, hence the title of this post. I’m not sure I understand what you mean when you say “I find it hard to believe no one took the 5 minutes to google this”, etc. The question at hand is how are the attackers obtaining root, not what they do after they’ve got it.

       0 likes

  3. Via exploiting CMS vulns, web applications and SQL.

    Mary, Apache likely has absoutly nothing to do with the infection other than after the intruder gains access via a web application vuln, they use it to persist via installing a module.

    So, in reality, it has more to do with the inadequacy of web application security and web security products being used by these clients than it does by the fact that they use what the majority of the world uses for a web server.

    “Landesman picked a random sample of 1,239 compromised websites and found all were running Apache version 2.2.22 or higher, mostly on a variety of Linux distributions. ”

    The fact that they are different versions of Apache and running different distros should be an indicator its not Apache or Linux to blame.

    Also, this has been written on since blackhole exploit kit started using it… [sic] rogue-apache-modules-iframe-blackhole-exploit-kit

       5 likes

  4. Mary – thx for article and Erik – thx for mention my blog.
    Unfortunately, there are plenty of ways to get root access on shared servers.
    Path usually looks like this:
    1. Attacker get access to server by exploiting vulnerability in web server scripts (outdated CMS\ buggy scripts\SQLi etc) – level of access – nobody
    2. via uploaded shell, attacker exploit one of vulnerabilities that published and not patched to gain root on machine. then rootkit installed and\or user with root \su privileges created.
    3. In case kernel or system itself is not vulnerable till now – then bruteforce attack launched or targeted attack against server management team, or many other variations as well, to get access to local computers of server administrator. Then password sniffed from there.

    Regarding the article topic – well, Darkleech known in malware researchers community for quite long, but today, thx to ArsTechnica, it hit the news :)
    Regards
    Denis Laskov

       2 likes

  5. People know me as @unixfreaxjp in twitter and I post in MalwareMustDie blog.
    This threat is important to follow and allow me to share my investigated case here. As additional to the Jemery and Denis posts, which was stated:

    > Via exploiting CMS vulns, web applications and SQL.
    > 1. Attacker get access to server by exploiting
    > vulnerability in web server scripts (outdated CMS\
    > buggy scripts\SQLi etc) – level of access – nobody

    The above opinion is practically true.
    In practical, hackers actually gained root access in a snap. I supervised hundreads servers infected by this malware module and found that the penetration was made via Parallell’s Plesk Panel, which is not CMS nor mere application but is the Web Admin Panel which is having the root authority to perform server’s maintainance via web.

    After cross checking forensics analysis of the penetrated servers which I posted in case of (which was included in Ars Technica)
    http://malwaremustdie.blogspot.jp/2013/03/the-evil-came-back-darkleechs-apache.html

    I found that the “CVE-2012-1557″ vulnerability was used to gain control of root in servers in the snap by hackers. The details of the CVE is: Vulnerability in admin/plib/api-rpc/Agent.php in Parallels Plesk Panel 7.x and 8.x before 8.6 MU#2, 9.x before 9.5 MU#11, 10.0.x before MU#13, 10.1.x before MU#22, 10.2.x before MU#16, and 10.3.x before MU#5 allows remote attackers to execute arbitrary SQL commands via unspecified vectors.

    I have corresponsense with the first researcher who cover the malware module about this vulnarability and he found the cPanel was similar bug in cPanel was used too.

    The conclusion is the hacker in this case was having an MO for aiming administration panel to gain root priviledge in a snap, which is the point that we should highlight to mitigate the same problem in the future.

    If you wonder why there are so many ISP/Hosting portals got compromised in this attack, more than cooporate or individual servers is because ISP have lag in providing latest version of web administration panel in their infrastructure, and the hackers KNOWS this. Is time that we SHOULD start to care about this too.

       1 like

  6. Have a look at Qualys’ Malware Detection Service. Basically, they have VMs visit all the links on your website, and check to see if anything malicious happens when clicking those liinks and provide results about questionable links. Not to sound like a shill – this is the tool we use to review Cisco.com

    They have a link to a 14-day free trial.

    https://www.qualys.com/forms/trials/stopmalware/

    Doug Dexter
    Infosec Audit Manager

       0 likes

  7. I have been infected

       1 like

    • > I have been infected

      Very sorry to hear it. Hope you handle it well.
      Please upload the malware *.so sample into Virus Total? So the AV products can make signature of the latest variant?

      The lack of malware samples was making many Linux AV scanner could not detect this threat at the time AV scanning is needed most at the infected servers.

      You kindly help is greatly appreciated, with thank’s.

         0 likes

      • I will be glad to post… I thought I had submitted it with my previous posting but I have a cyberstalker that rules my moves…. I have more Trojans than Helen… The malware is beyond anything I have previously seen…. And very well hidden…

           0 likes

  8. the pie chart is really cute!

       1 like

  9. Hi Mary,
    Sent this stuff to DanG and would have sent it privately but couldn’t find an email address I was sure would work.
    Some further information about how bads guys are getting root on these web servers.
    In Jan – Feb 13 there was a spate of web servers sending out spam. Turned out they had been rooted via SSHD and were sending out spam (I know Darkleech is serving web pages but once you have root you can choose your tool).

    There was also the cPanel compromise (ARS passim) wherein a tech support workstation got infected which was able to compromise the proxy server the workstation was sat behind and lots of people who had given cPanel Support SSH passwords got their servers compromised in the same way — libkeyutils library.

    But lots of machines without cPanel were getting infected the same way so how?
    WebHostingTalk did a lot of investigation into this (it’s 97 pages) and the following points emerged (Igor Seletskiy of Cloudlinux and Steven Ciaburri participated extensively):
    – Those servers where SSH keys were used to login and SSH passwords were disabled didn’t get infected.
    – Those servers where SSH login was restricted to a particular set of IP addresses didn’t get infected.
    – Other than that it didn’t matter what kind of Linux you used or which web server (Apache,NGinx, etc.) — but the BSDs were unaffected and they use a different SSH mechanism.
    – Their conclusion is that the workstations used to login to the web servers over SSH were infected with a trojan/keystroke logger. (They actually found a workstation which was used to SSH into the web server and discovered the keylogger). They also observed a malicious SSH login while it was going on.

    Meanwhile Bojan Zdrnja at ISC has also been investigating this and finds similarities with the Ebury Trojan of 2011 — he thinks a large part of the Ebury code is re-used but there is a crucial difference: in Ebury it patched the whole SSHD which made it easier to discover and was vulnerable to
    being over-written during routine patching. The libkeyutils library is not changed that often so much less chance of being over-written.

    References:
    Webhosting Talk
    http://www.webhostingtalk.com/showthread.php?t=1235797&page=97
    (This is the last page — see Patrick’s summary)

    ISC
    https://isc.sans.edu/diary/SSHD+rootkit+in+the+wild/15229

    Cloudlinux
    http://www.cloudlinux.com/blog/clnews/sshd-exploit.php
    (See Igor’s last Comment)

    Best wishes,

       0 likes

  10. April 6, 2013 at 8:48 am

    Good and great post

       0 likes

  11. is this realy related to the SSHD Rootkit described at http://www.webhostingtalk.com/showthread.php?t=1235797&page=97 ?
    i thought that was the end of it but it looks we have to see more.
    we haven’t been infected but this is making us enforcing our security policies even more. advisable for everyone in fact. never use root passwords, use SSH keys on non-standard SSH ports !
